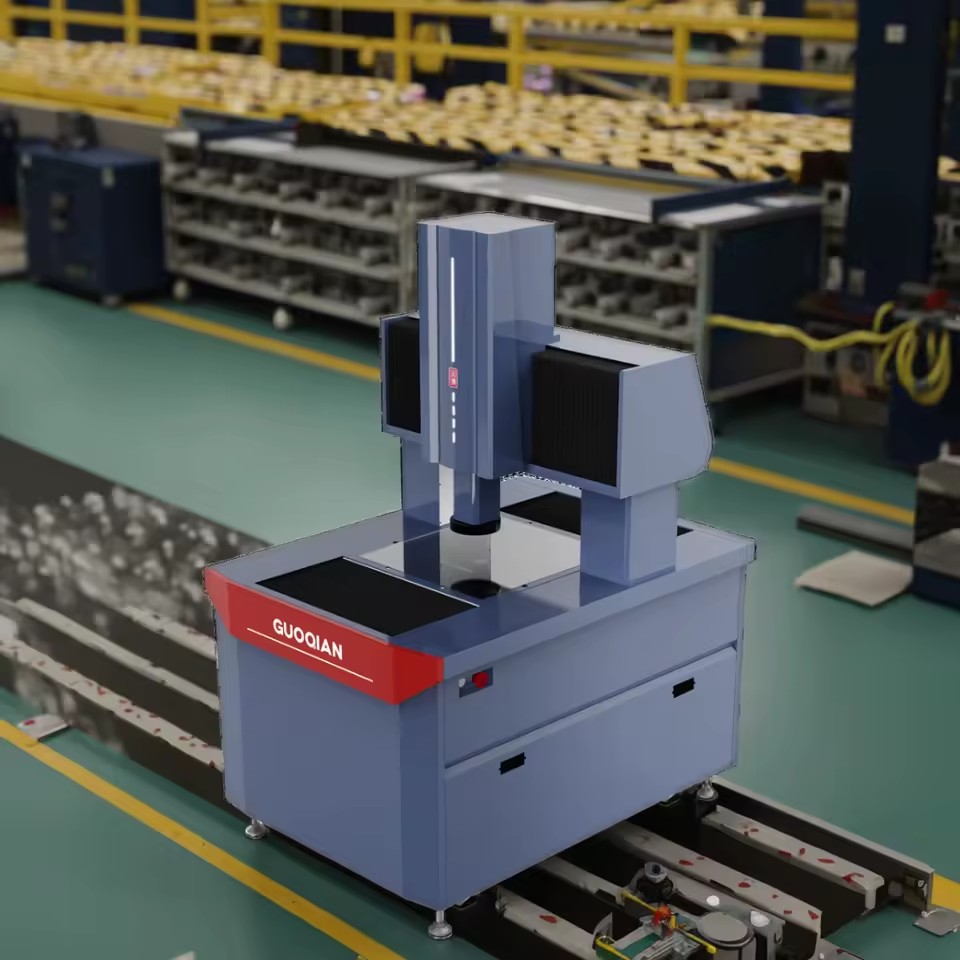

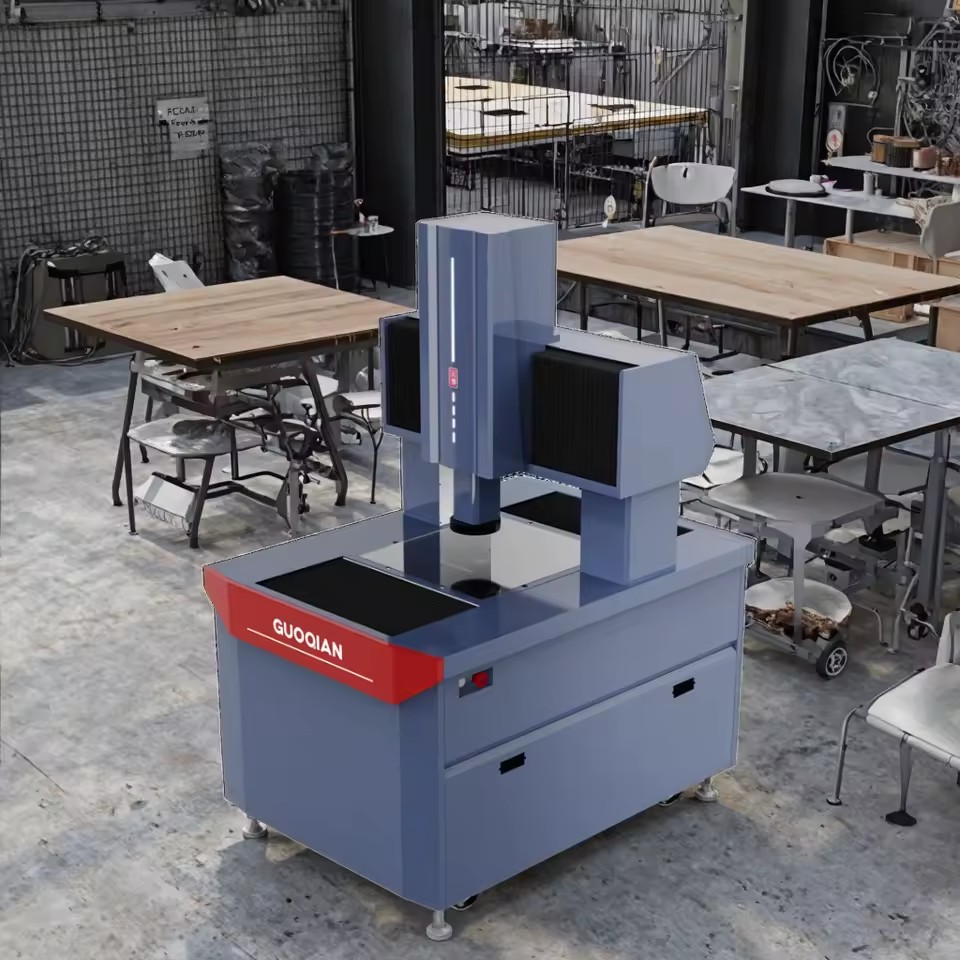

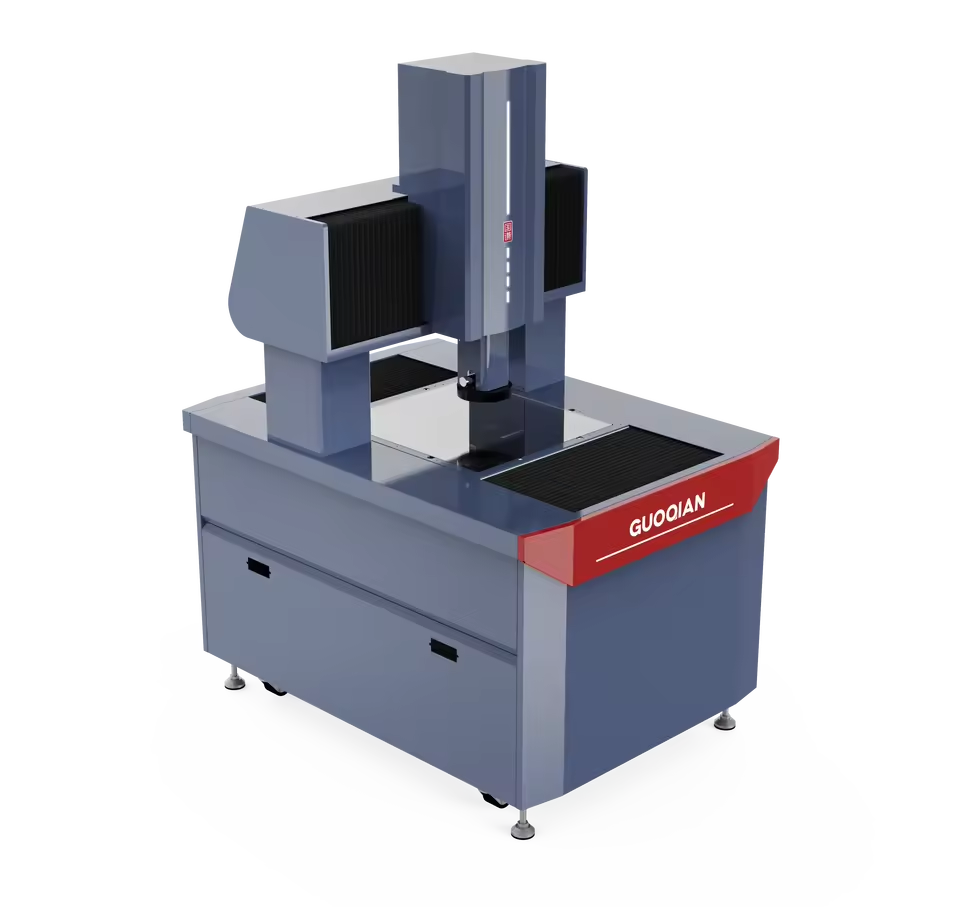

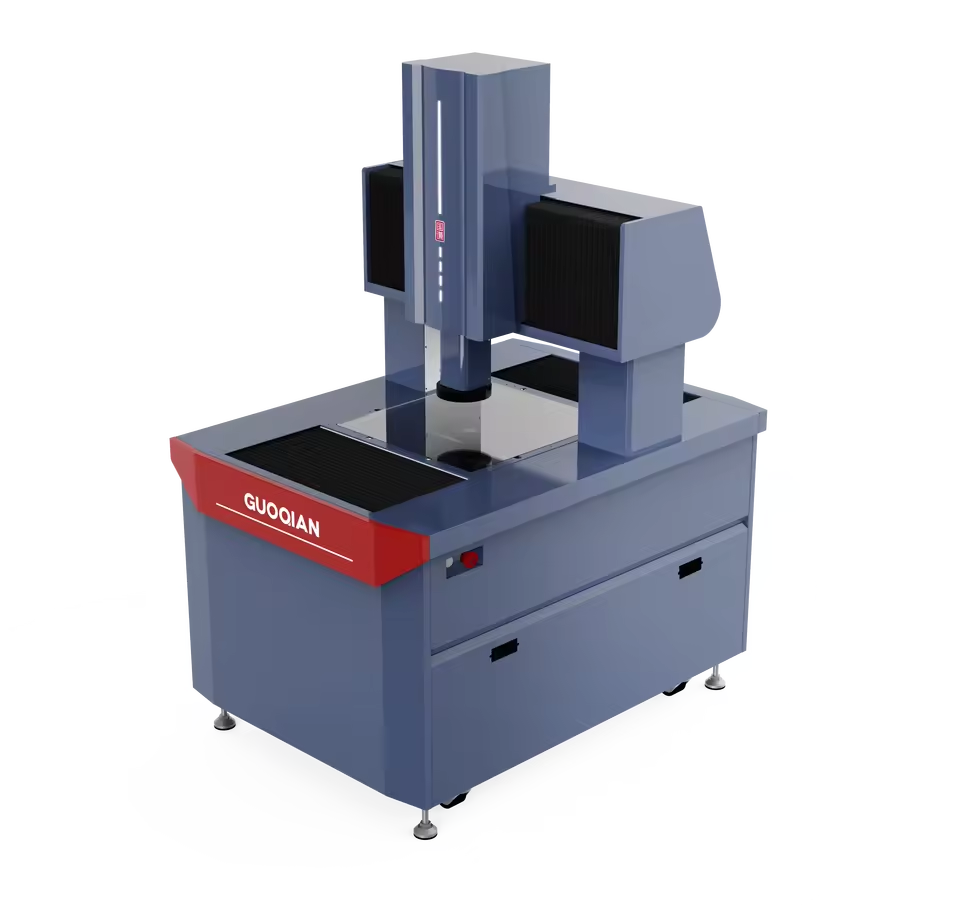

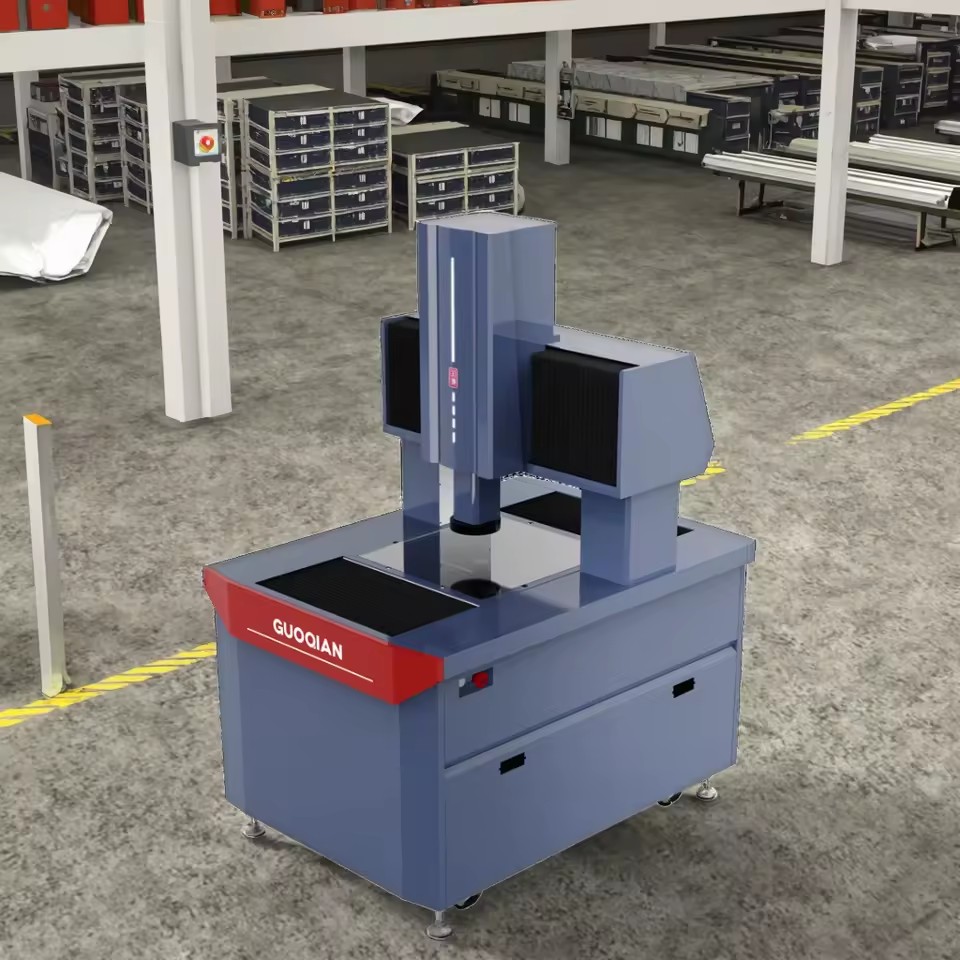

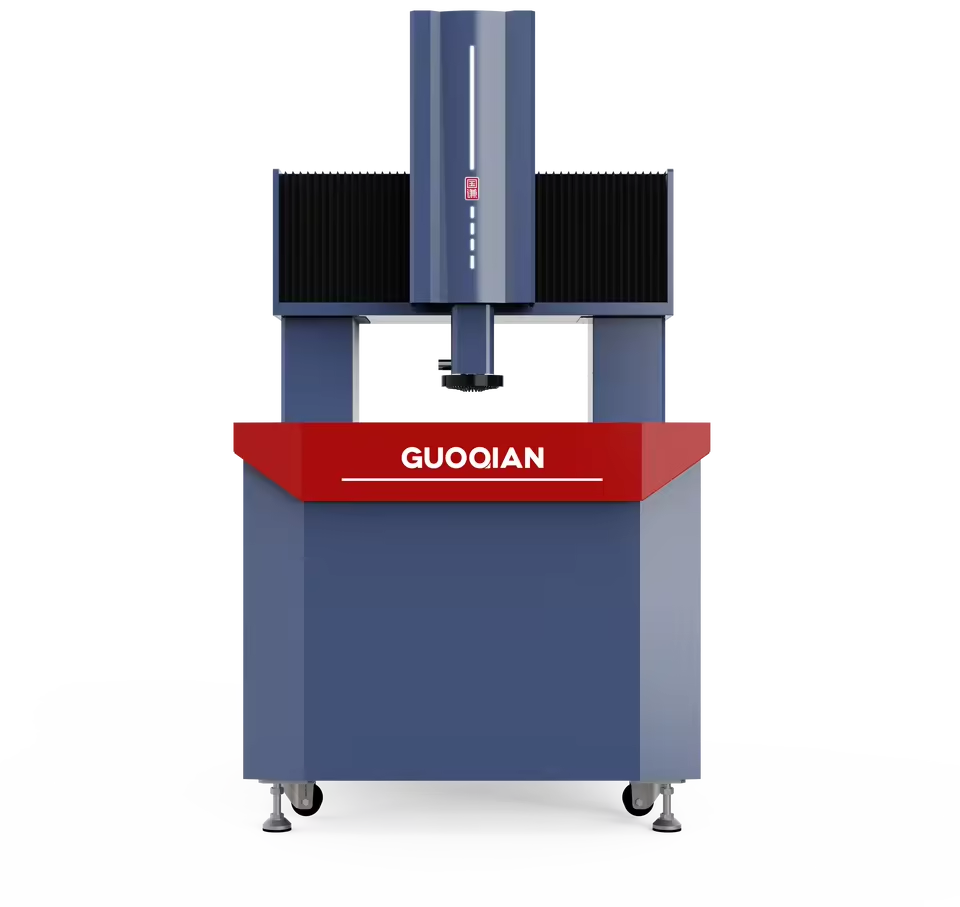

Highly Recommend High Precision Professional Automatic Optical CMM Coordinate Measuring Machine 2D 3D Vision Measuring Max

Product Importer Gallery 01 · 2b1709f134

Product Importer Gallery 02 · 2eee3917da

Product Importer Gallery 03 · f55c6adc8b

Product Importer Gallery 04 · 1896991ab1

Product Importer Gallery 05 · 458031e876

Highly Recommend High Precision Professional Automatic Optical CMM Coordinate Measuring Machine 2D 3D Vision Measuring Max

Name: Highly Recommend High Precision Professional Automatic Optical CMM Coordinate Measuring Machine 2D 3D Vision Measuring Max
SKU: 355H-NYC4-VZKJ
Price: 36340.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 36,340.00 36340.0 USD $ 36,340.00

Minimum order quantity: 1 Units

Key attributes

View all

Laser Source Brand

Max

Cnc or not

Yes

Warranty

1 Year

Condition

New

Laser Level Special Features

Self-Leveling

Place of origin

China, Guangdong

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

HIGH PRECISION AUTOMATIC ZOOM LENS

Model	ZHI 332	ZHI 442	ZHI 552	QIAN 662
Travel(mm)	300×300×200	400×400×200	500×500×200	600×600×200
Dimension(mm)	1150×850×1650	1350×950×1650	1550×1050×1650	1650×1250×1650
Weight(kg)	630	720	820	930
Capacity(kg)	Capacity(kg)	60
Accuracy	X and Y axes	（1.8+L/200）µm	（2.0+L/200）µm	（2.2+L/200）µm	（2.4+L/200）µm
Zaxes	（5.0+L/200）µm
Speed	X and Y axes	400 mm/s
Zaxes	100 mm/s
Operating Environment	Temperature	20℃±3℃
Humidity	35%～75% RH
Power	1500 W
Power Supply	220 V

Bill of Material
No.	Project	Specifications & Main Parameters	Characteristic Advantage
1	Hardware	4-axis CNC measuring	Including automatic zoom system
2	Structure	Full granite construction	Stable performance
3	Scale	0.5µm resolution scales	High resolution
4	Guide	3-axis precision slide	Ultra high straightness
5	Motor	Servo motor	Precision screws with central drive
6	Camera	Hikvision 1/2 "CCD color	Digital CCD, High pixel, Global color,Large field of vision.
7	Lens	Auto-zoom lens Visual Magnification: 20X-126X Optical Magnification: 0.7X-4.5X	Autonomous program control,Actual magnification fluctuates slightly depending on screen size.

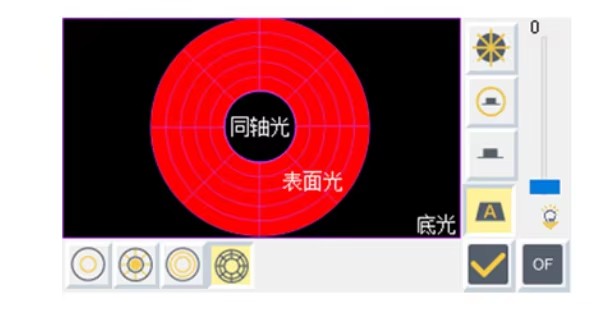

8	Surface	5-ring, 8-zone LED light source	Convex design,The light source is focused from multiple angles.
9	Contour	LED lighting	Special reflective design
10	Computer	Pre-built PC	DELL

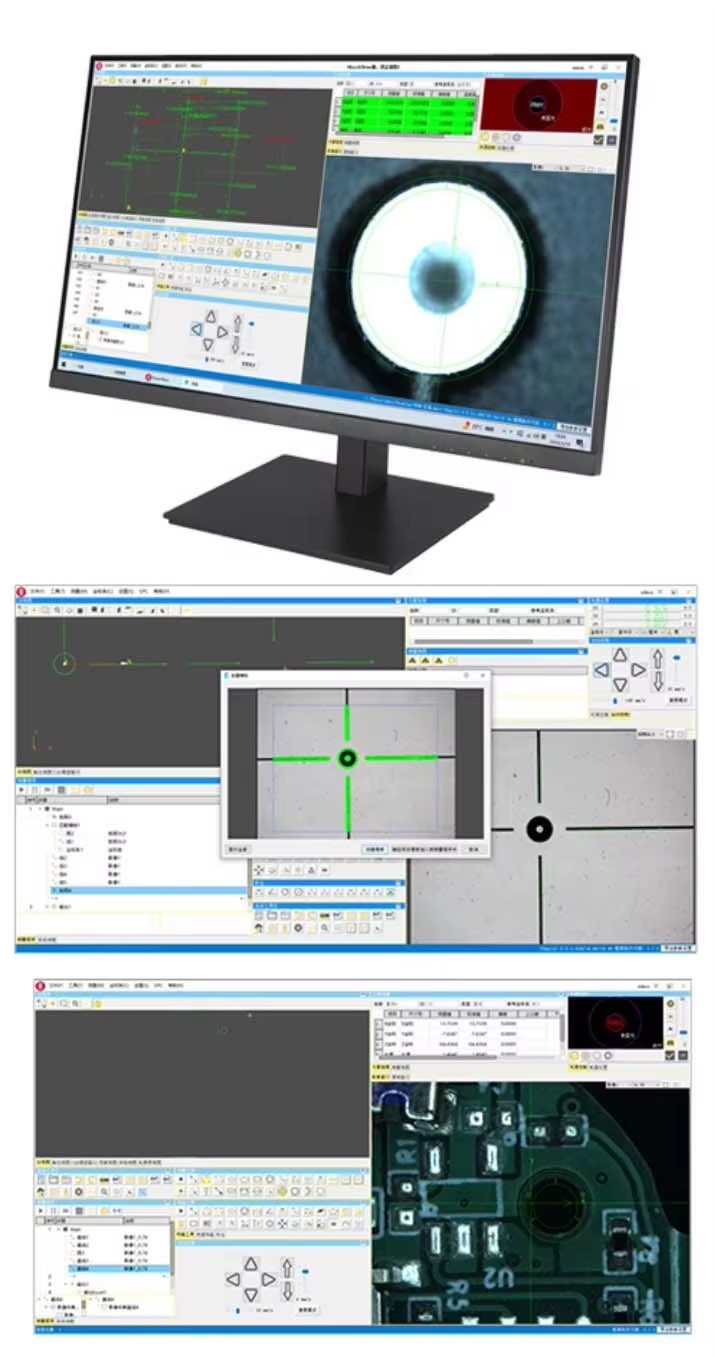

11	Software	GQuick 4.1	Independent R&D

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Laser Source Brand

Max

Cnc or not

Yes

Warranty

1 Year

Condition

New

Laser Level Special Features

Self-Leveling

Place of origin

China, Guangdong

Weight (kg)

1200

Dimension

1150*850*1650mm

Travel

300*300*200mm

Weight

620KG

Capacity

25KG

Power

1600 W

Power supply

220 V

Accuracy

X, Y(2.0+L/0.2m), Z(5.0+L/0.2mm)

Speed

X, Y(400 mm/s)Z(100 mm/s)

Temperature

20°C±3°C

Humidity

35%~75% RH

Selling Units

Single item

Single package size

1150.0X850.0X1650.0 cm

Single gross weight

620.0 kg

Laser Type (Product option)

Other

Model number

ZHI Seriess

Power(W) (Product option)

other

Lead time

7 days

Minimum order

1 Units
