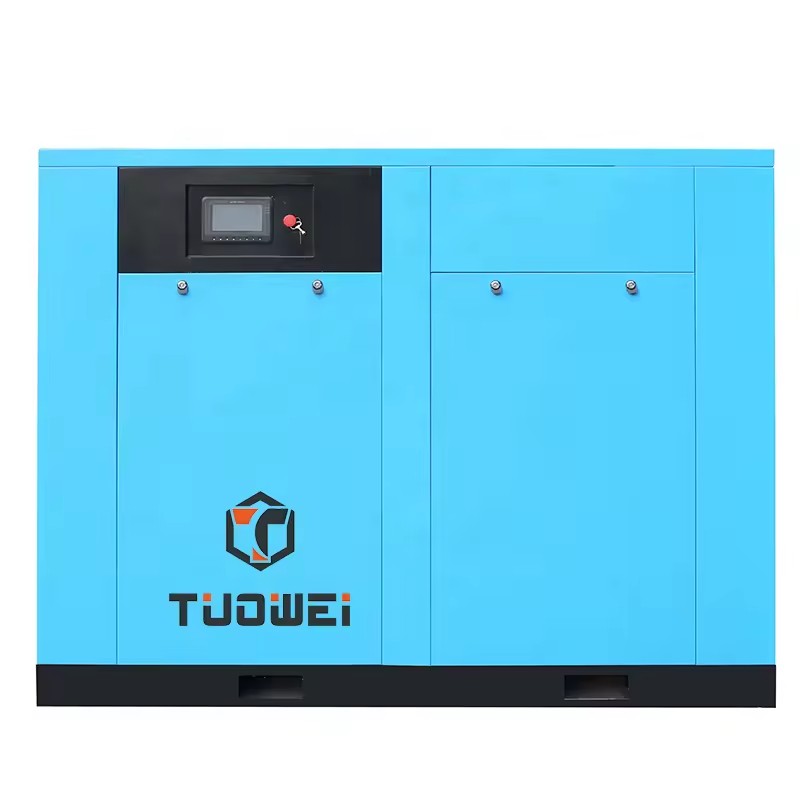

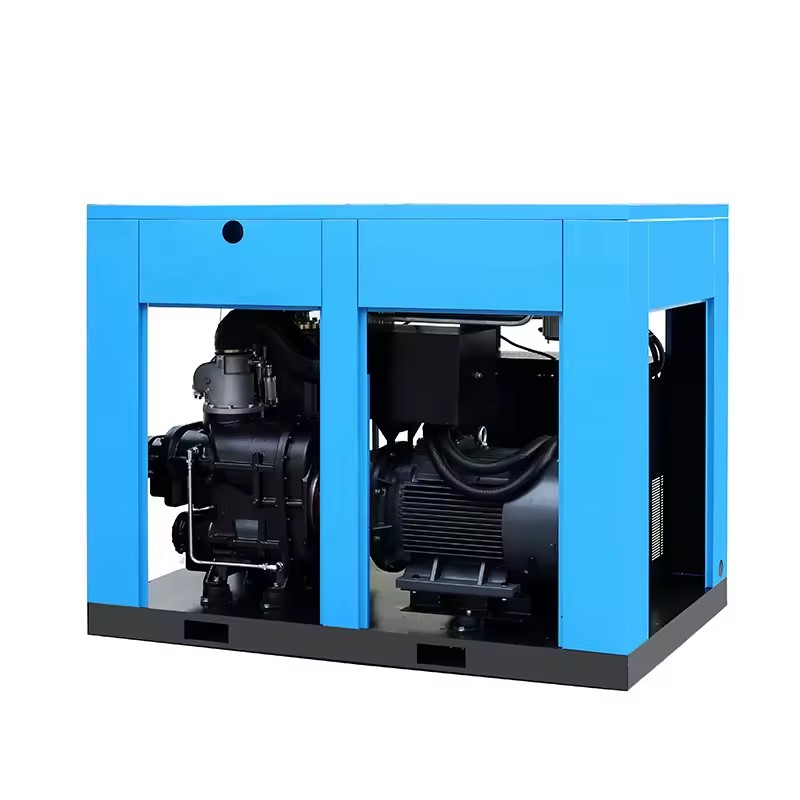

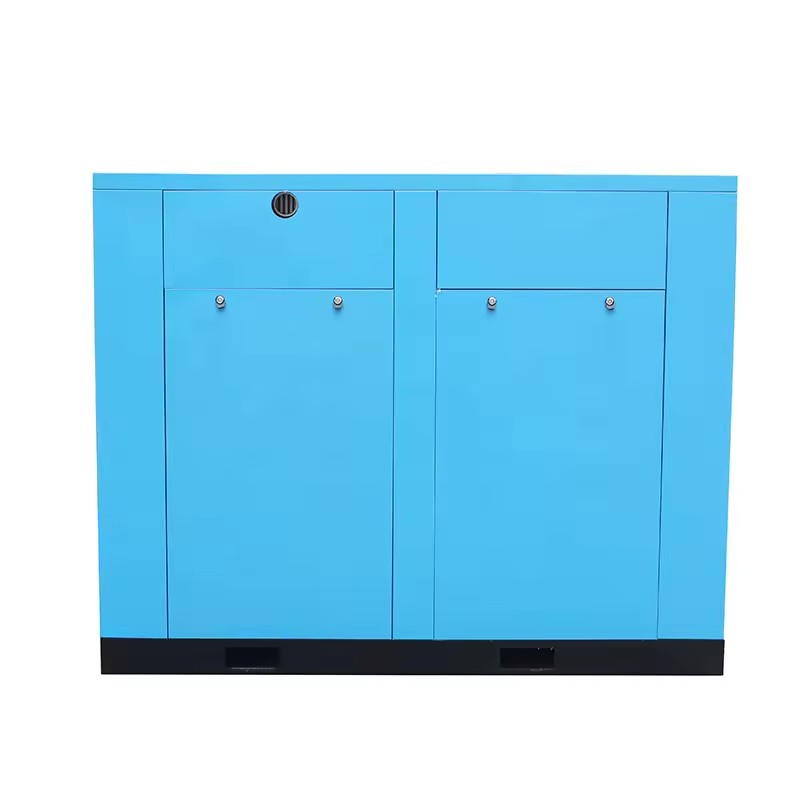

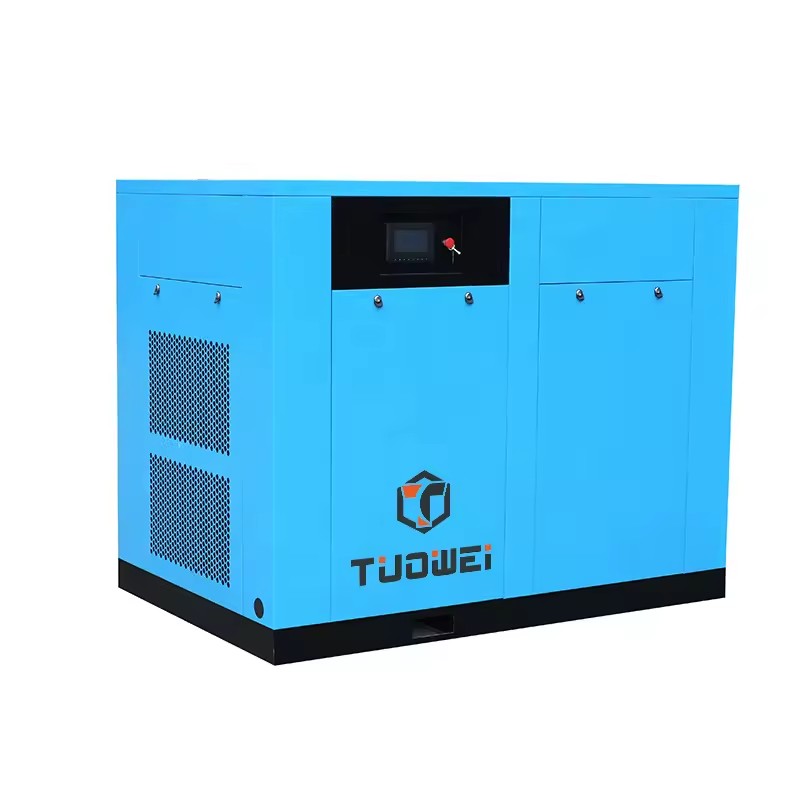

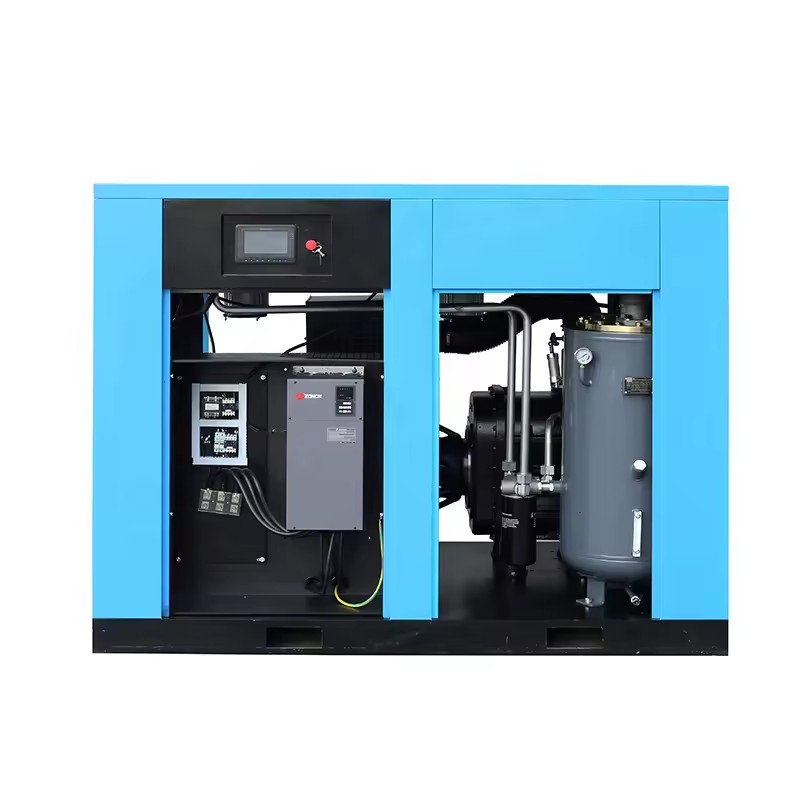

Name: 30kW 40Hp Industrial Energy Saving Air Cooling Double Screw Type Air Compressor Machine Prices
SKU: B2B-43384
Price: 9680.0 USD
Availability: PreOrder

Product description

Please contact our sales personnel for the latest product discounts, detailed configurations, transportation costs, etc

Introduction of double stage screw air compressor Double stage screw air compressor in the main parts with double screw,the compression process by the first stage screw and second screw through grading series compression. Double screw air compressor in addition to uphold twin-screw compressor has the advantages of simple structure,flexible installation and high efficiency,but also highlights the advantages of their own efficient,energy-saving: n reduce the bearing load,improve volume efficiency, the case of some load operation,can improve efficlency,energy saving. Double screw air compressor than twin-screw compressor energy saving up to 15%,each run for 8000 hours a year, Annual savings of about 200 thousand yuan electricity.

Advantage of two stage screw air compressor

Model	Working Pressure	Capacity	Motor Power	Dimension (mm)	Net Weight (KGS)	Air Outlet
psi	bar	cfm	m3/min	kW/hp
SGPM15II	100	7	105.9	3.0	15/20	14809201190	520	G1
116	8	102.4	2.9
145	10	84.7	2.4
174	12	77.7	2.2
SGPM18II	100	7	127.1	3.6	18.5/25	14809201190	520	G1
116	8	123.6	3.5
145	10	102.4	2.9
174	12	88.3	2.5
SGPM22II	100	7	148.3	4.2	22/30	14809201190	520	G1
116	8	144.8	4.1
145	10	123.6	3.5
174	12	113.0	3.2
SGPM30II	102	7	229.5	6.5	30/40	166010851400	750	G1 1/2
116	8	226.0	6.4
145	10	173.0	4.9
174	12	148.3	4.2
SGPM37II	102	7	254.2	7.2	37/50	166010851400	750	G1 1/2
116	8	250.7	7.1
145	10	222.5	6.3
174	12	190.7	5.4
SGPM45II	102	7	346.0	9.8	45/60	210013601740	1510	G2
116	8	342.5	9.7
145	10	275.4	7.8
174	12	229.5	6.5
SGPM55II	102	7	452.0	12.8	55/75	210013601740	1510	G2 1/2
116	8	441.4	12.5
145	10	339.0	9.6
174	12	303.7	8.6
SGPM75II	102	7	617.9	17.5	75/100	210013601740	1530	G2 1/2
116	8	582.6	16.5
145	10	441.4	12.5
174	12	395.5	11.2
SGPM90II	102	7	734.4	20.8	90/120	230014701840	1940	G2 1/2
116	8	699.1	19.8
145	10	596.7	16.9
174	12	504.9	14.3
SGPM110II	102	7	865.1	24.5	110/150	230014701840	2400	G2 1/2
116	8	829.8	23.5
145	10	695.6	19.7
174	12	621.5	17.6
SGPM132II	102	7	1059.3	30.0	132/175	230014701840	2400	G2 1/2
116	8	988.7	28.0
145	10	829.8	23.5
174	12	699.1	19.8
SGPM160II	102	7	1218.2	34.5	160/200	285016002000	5350	G2 1/2
116	8	1186.4	33.6
145	10	1059.3	30.0
174	12	840.4	23.8
SGPM185II	102	7	1447.7	41.0	185/250	360021002190	5450	DN100
116	8	1355.9	38.4
145	10	1147.6	32.5
174	12	1009.9	28.6
SGPM220II	102	7	1716.1	48.6	220/300	380019802150	6500	DN125
116	8	1659.6	47.0
145	10	1447.7	41.0
174	12	1341.8	38.0

After-sale Service

• Any questions or requests before, during or

• Warranty: One year for the whole machine Genuine spare parts will be provided with best price.

Overseas Engineer Service

• We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.

Q1: What is the rotor speed for the air end? A1: 2980rmp. Q2: What's your lead time? A2: usually, 5-7 days. (OEM orders: 15days) Q3: Can you offer water cooled air compressor? A3: Yes, we can (normally, air cooled type). Q4: What's the payment term? A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency. Q5: Do you accept customized voltage? A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests. Q6: What is your warranty for air compressor? A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs. Q7: Can you accept OEM orders? A7: Yes, OEM orders are warmly welcome. Q8: How about your customer service and after-sales service? A8: 24hrs on-line support, 48hrs problem solved promise. Q9: Do you have spare parts in stock? A9: Yes, we do. Q10: What kind of initial lubrication oil you used in air compressor? A10: TOTAL 46# mineral oil.

Description images

30kW 40Hp Industrial Energy Saving Air Cooling Double Screw Type Air Compressor Machine Prices

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Approx. shipping fee: $ 3,000.00 for 1 piece · Fastest delivery: Oct 30 (55 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Type

Screw

Gas type

Air

Power source

AC Power

Lubrication style

Lubricated

Cooling Method

AIR COOLING, Air Cooled

Configuration

Stationary

Voltage

380V/50Hz/3 phase

Machinery test report

Not Available

Video outgoing-inspection

Not Available

Mute

Warranty

1 Year

Core components

PLC, Motor, Air end

Weight (kg)

300

Place of origin

China, Fujian

Model number (Specification)

SGD 30II

Dimension(L*W*H)

1660*1085*1400mm

Air end

Baosi GHH Hanbell Airend

Drive mode

Direct drive

Noise Level

68±2 dBA

Color

Customized Color

OEM

Welcomed

Application

Industry

Weight

560kg

Selling Units

Single item

Single package size

170X120X163 cm

Single gross weight

1040.0 kg

Power(W) (Product option)

30 kw

Working pressure (Product option)

8 bar, 13 bar, 10 Bar, 7 bar

Lead time

10 days

Minimum order

1 Units
