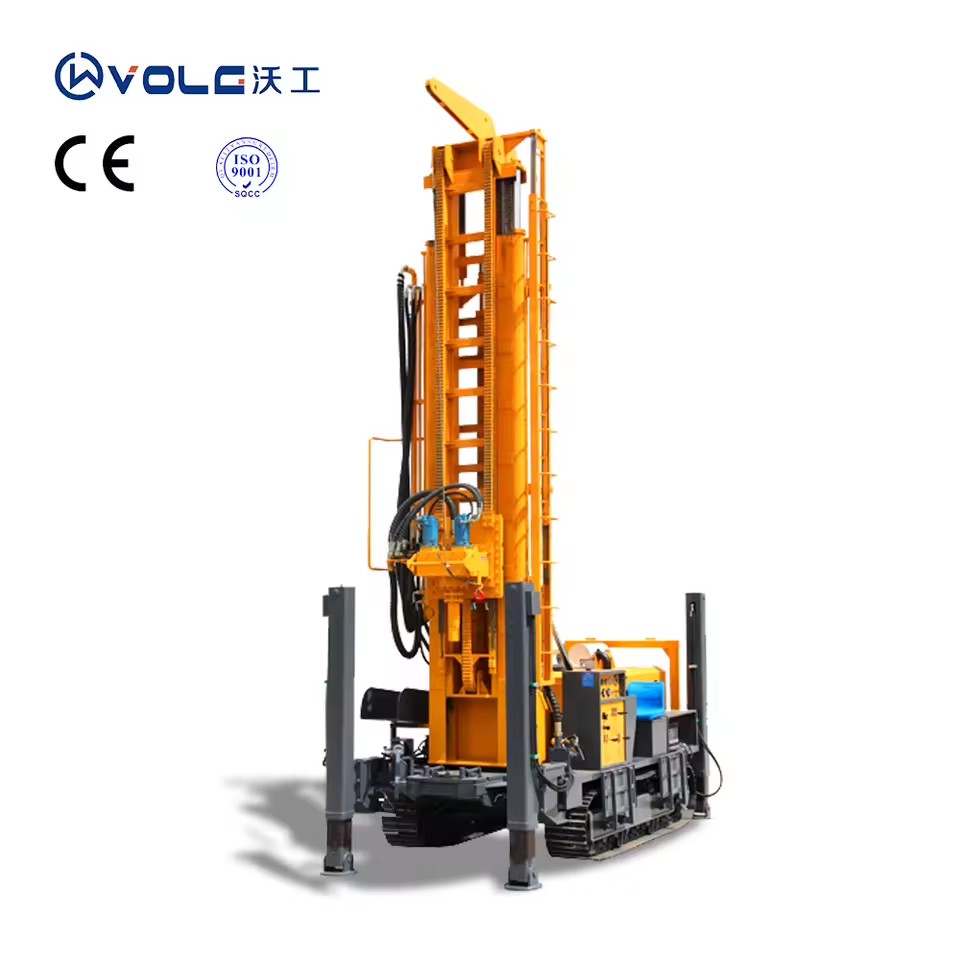

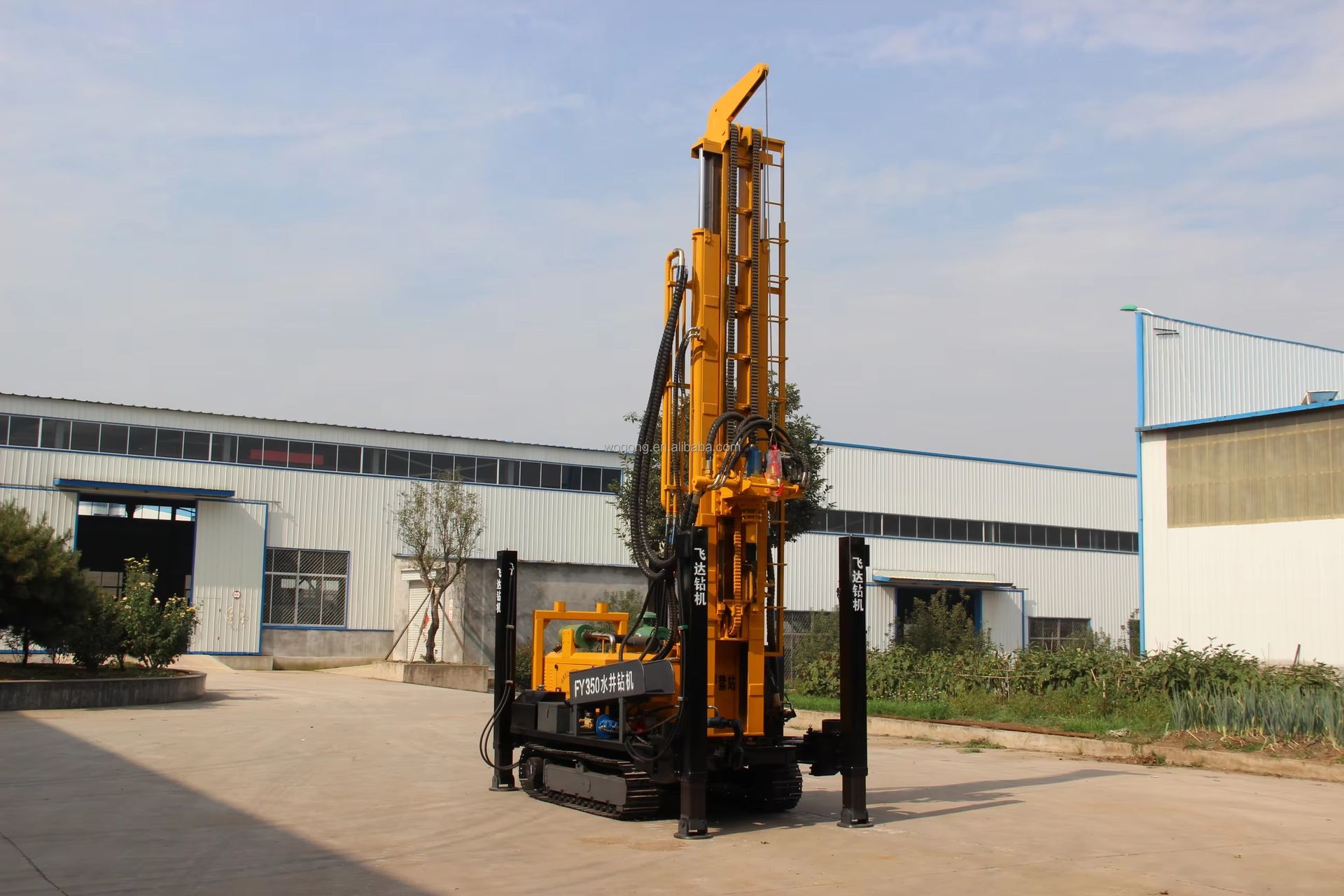

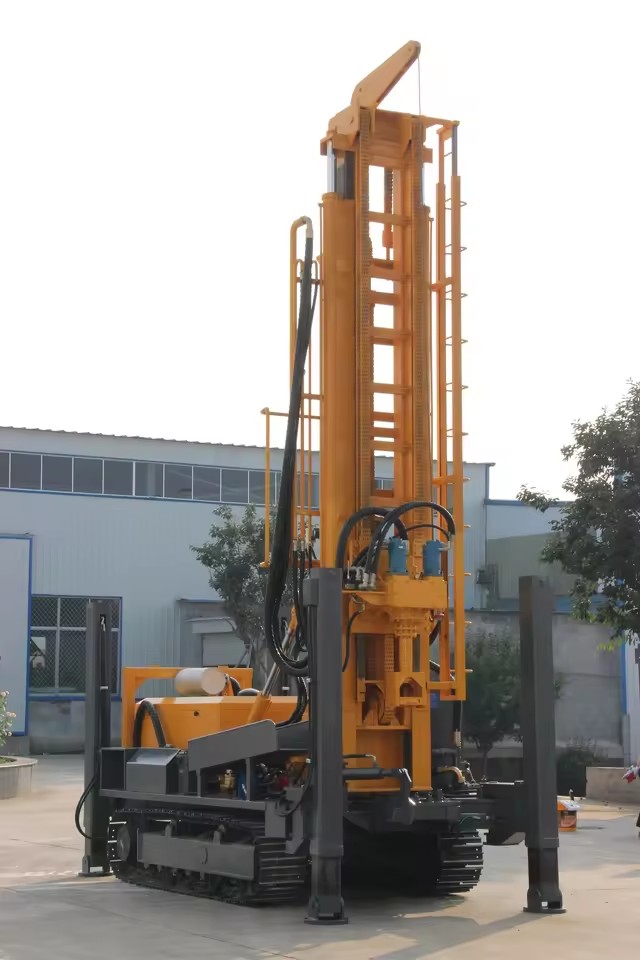

Name: 300m Crawler Diesel Engine Water Well Drilling Machine Borehole Rig Mine Drilling Rig Factory Price
SKU: B2B-38861
Price: 21410.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$18,000-23,000 / piece

Factory direct sales of various water well drilling rigs
Model	FY280	FY300	FY350	FY450	FYX200
The weight(T)	7.6	7.2	8.6	9.4	5
Drill pipe diameter(mm)	76/89	76/89/102	89/102	89/102	76/89
The hole diameter(mm)	140-305	140-325	140-325	140-350	140-254
Drill pipe lenght(m)	1.5m/2.0m/3.0m	1.5m/2.0m/3.0m	1.5m/2.0m/3.0m/6.0m	1.5/2.0/3.0/6.0m	1.5/2.0/3.0m
Drilling depth(m)	280m	300m	350m	450m	200m
Rig lifting force(T)	17	18	22	25	13
One-tine advance length(m)	6.6	3.3/4.8	6.6	6.6	3.3
Equipped capacitor(kw)	74	85	92	103	65
Hoisting force of winch(T)	2	2	2	2	1.5
Swing torque(N.m)	4500-6000	5700-7500	6200-8500	7000-9500	3400-4700
Dimension(mm)	590018502360	410020002500	600020002550	595021002600	3950175022 50
Swing speed(rpm)	40-70	40-70	66-135	50-135	45-70
The penetration effciency(m/h)	15-35	15-35	15-35	15-35	10-35
Rapid rise speed(m/min)	25	22	18	20	30
Walking speed(km/h)	2.5	2.5	2.5	2.5	2.5
Fast feeding speed(m/min)	30	40	33	40	60

Certifications & compliance

CE(2)

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Usage

Water Well

Type

Rotary Drilling Rig

Drilling Depth

Max.300m

Drilling Diameter

300 mm, 100 mm, 140-254mm

Power Type

Diesel

Voltage

Diesel engine

Core components

Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Shandong

Weight

5000 kg

Dimension (L*W*H)

3950*1750*2250mm

Mobility

YES

Keyword

Water Drilliing Rig

Color

Yellow(customize)

Function

Drilling Machining

Name

Water Drilling Rig Machine

Feature

High Drilling Efficiency

Application

Water Wells Rock Drill Rig

Drilling direction

to the ground45°-90°

Air consumption

17-31m3/min

One time advance length of the drill

3.3-6.6m

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

FY300, FY280, FYX200, FY350, FY450

Power (W) (Product option)

65kw, 75kw, 92KW, 85KW, 103KW

Certifications & Compliance

CE(2)

Lead time

20 days

Minimum order

1 Units

Customer reviews

5.0 (3)

Alex D. Verified buyer Repeat buyer

South Korea ·18 Jul 2023

The water well drilling rig purchased by is very good, and the factory direct sale is very reassuring.

Riley O. Verified buyer Repeat buyer

South Korea ·16 Oct 2022

Shipping was fast! Test machine efficiency is very good

Taylor H. Verified buyer Repeat buyer

South Korea ·28 Sep 2022

The work efficiency is very high, very easy to use, thank the supplier
