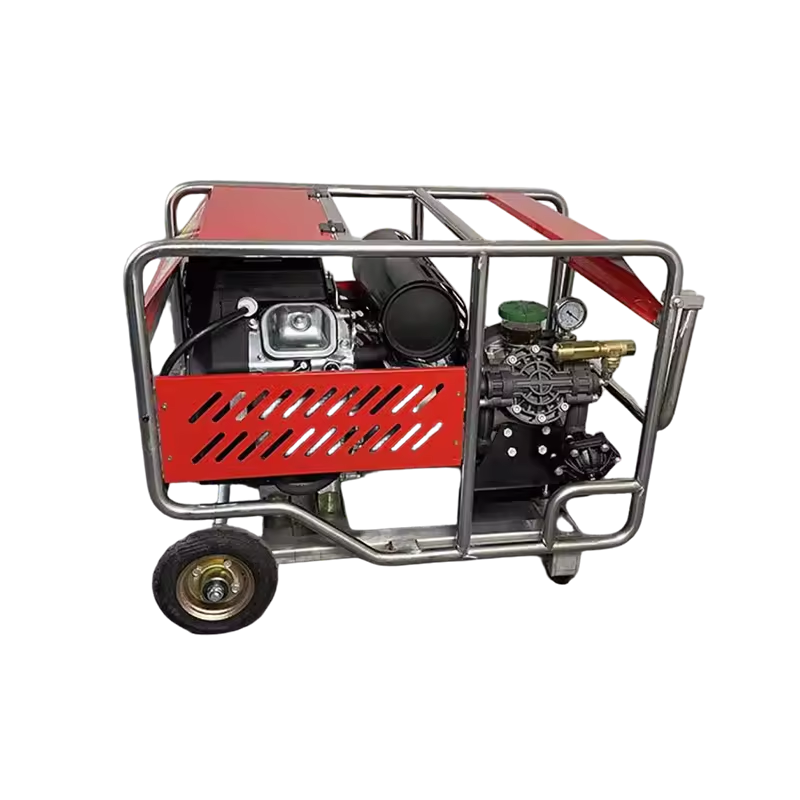

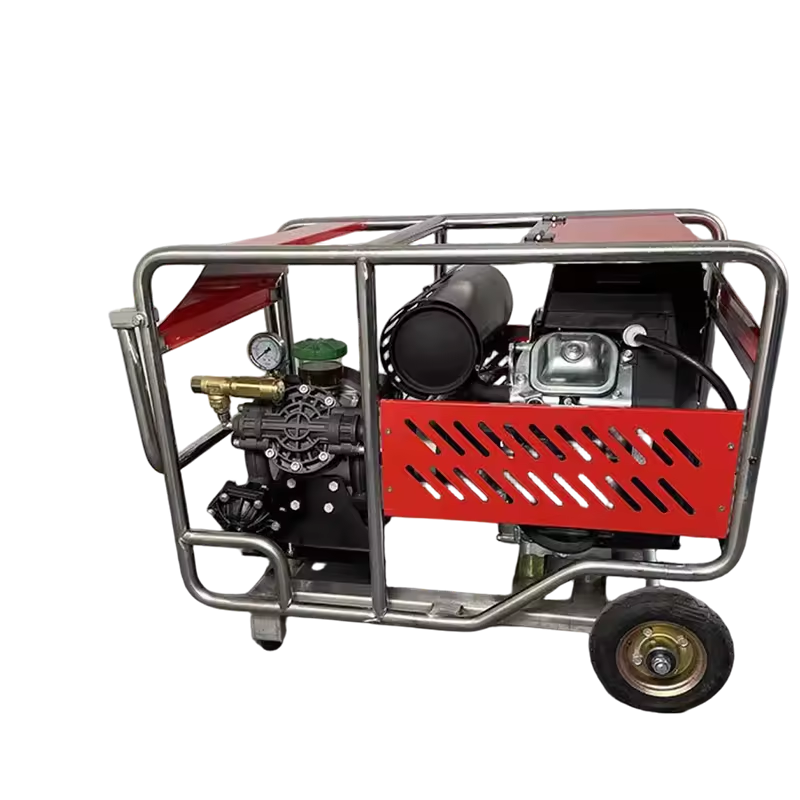

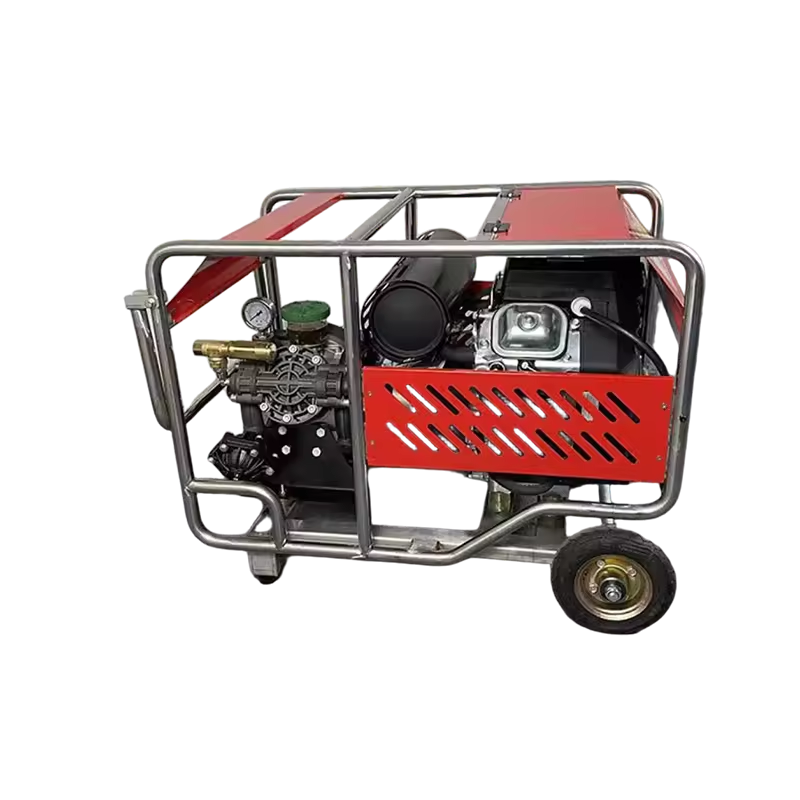

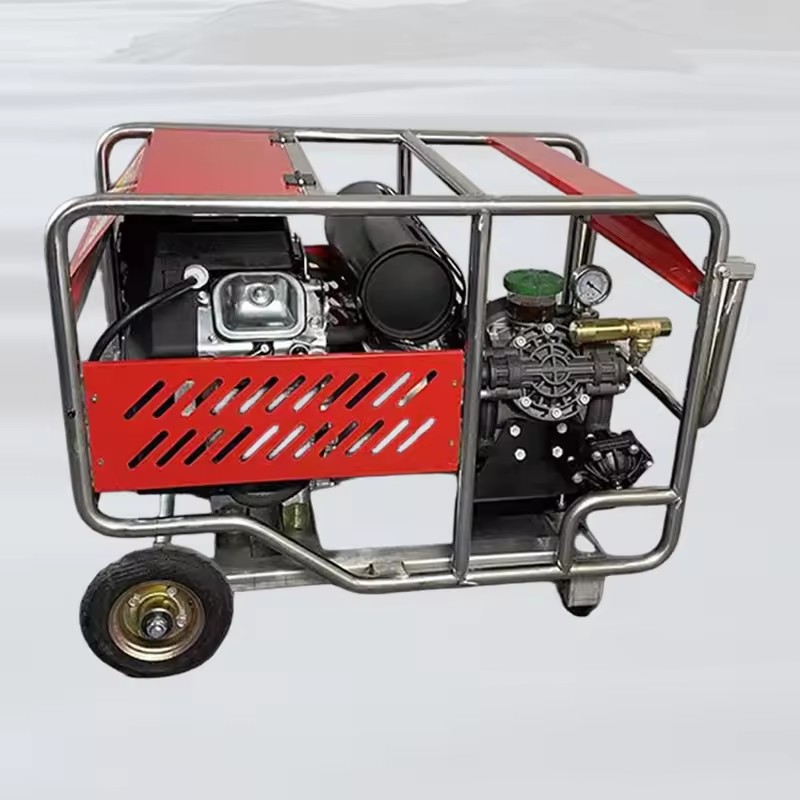

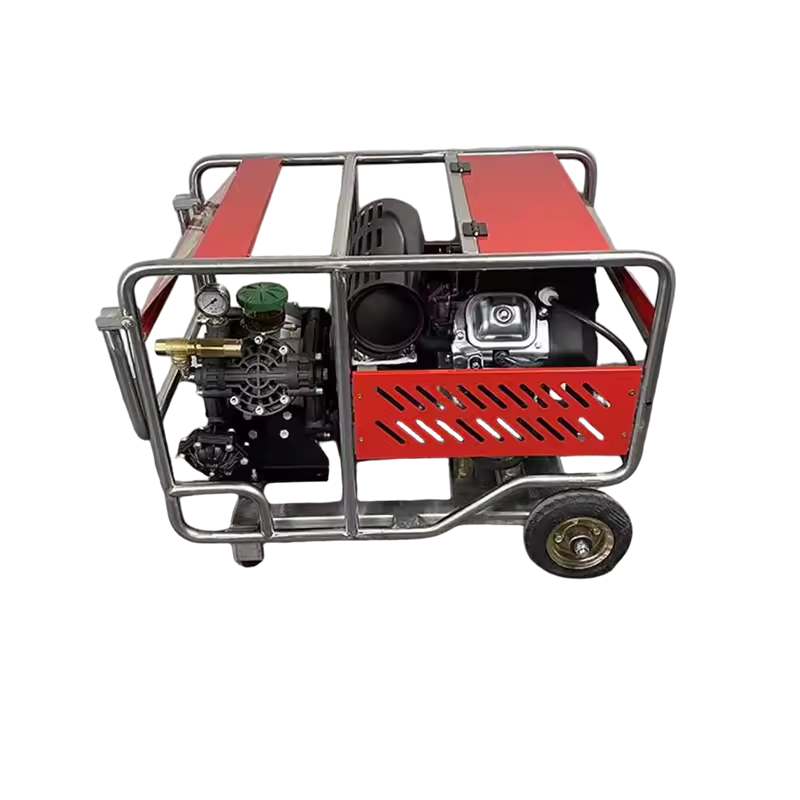

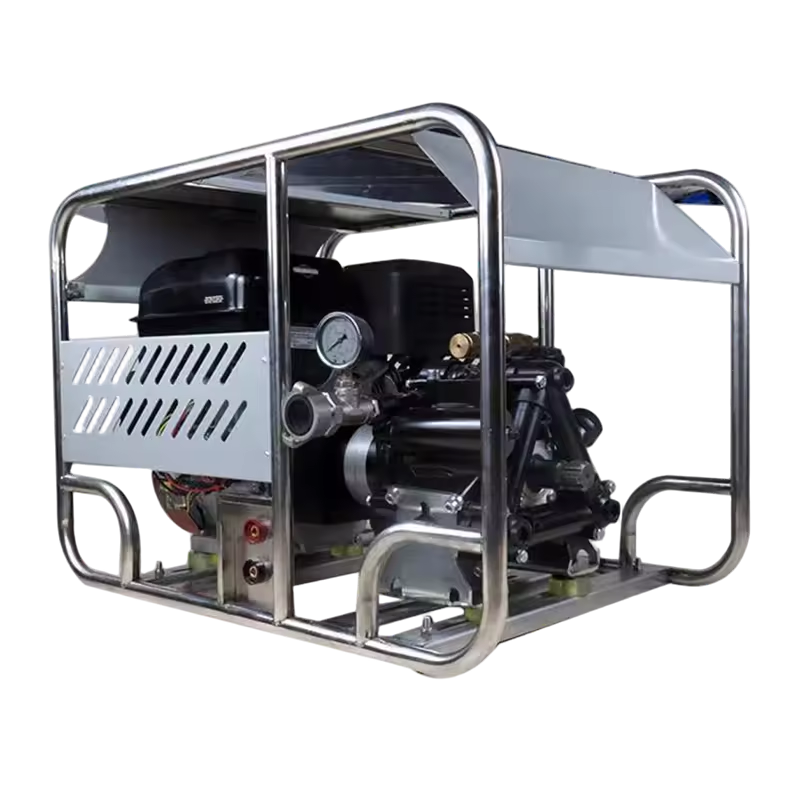

YPB7.2-5 High Pressure Hydraulic Diaphragm Pump Gasoline Fire Fighting Pump
Price
$
8360.00
Product information
Attributes
Application
Agricultural Irrigation, Landscape Watering
Structure
Triple-Cylinder Hydraulic Diaphragm Pump
Max flow rate
125 L/min(33.02gpm)
Max pressure
≥6 MPa(≥870.23psi)
Power source
Gasoline-Powered (4-Stroke Engine)
Chemical Compatibility
Compatible with Water, Fertilizer Solutions, Foam
Sealing Material
FKM
Impeller Material
Wear-Resistant Ceramic Alloy
Applicable temperature
10°C to 60°C
Outlet size
40 mm (1.6")
Import Size
40 mm (1.6")
Connection Type
Quick-Connect Stainless Steel (40 mm Inlet / 40 mm
Suction head
≥7 m(≥22.97ft)
Outlet Type
High-Pressure Nozzle
Discharge Pipe Size
40 mm (1.6")
Inlet Height
≥7 m (Suction Head)
Material
High-Strength Aluminum Alloy + Stainless Steel + T
Control Method
Manual Pull Start + Electric Start
Motor
4-Stroke Gasoline Engine
Surface Treatment
Anodized Aluminum Alloy + Anti-Corrosion Coating
Membrane material
TPU Diaphragm
Warranty
Negotiations between the two parties
Customized support
OEM, ODM
Horsepower
≥13.5HP
Pressure
≥5 MPa / ≥6 MPa
Hardness
High-Impact Resistant
Flow Meter Specification
Integrated Pressure Gauge
Filter material
Stainless Steel Mesh
Outlet Water Oil Content
0% (Oil-Free Pumping)
Model number (Specification)
YPB7.2-5
Place of origin
China
Selling Units
Single item
Single package size
78X52X65 cm
Single gross weight
68.0 kg
Flow Rate (Product option)
125 L/min(33.02gpm)
Maximum head
260 m(853.02ft)
Type (Product option)
Diaphragm Pumps
Voltage (Product option)
Gasoline-Powered
Fulfilment
Delivery
Lead time
31 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
