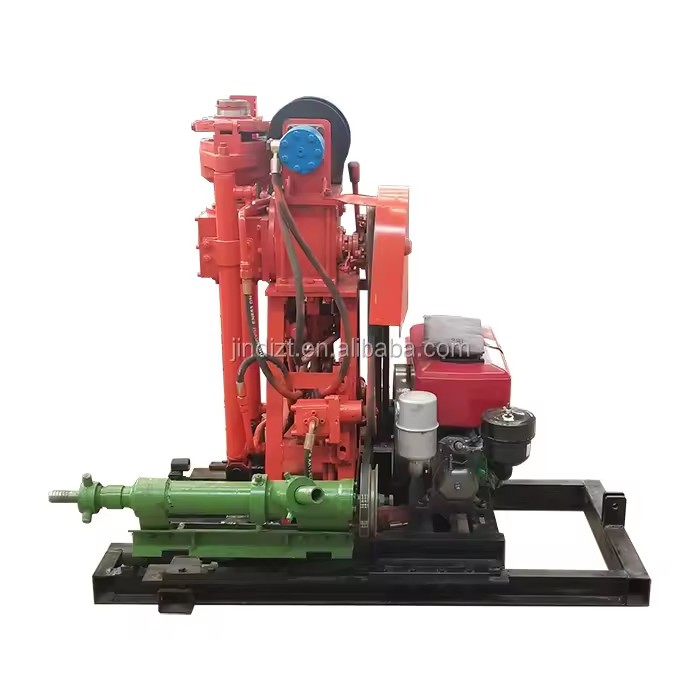

200m Water Drilling Rigs/drilling Water Wells/well Drilling Rigs for Sale

Available for enquiry 5.0 · 1 reviews
USD

$ 4,890.00 4890.0 USD $ 4,890.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.200m, 30-200m
Drilling Diameter
75mm, 300 mm, 100 mm, 50 mm, 60 mm, 450 mm
Power Type
Diesel
Voltage
380V
Product description

new type water well drilling machine/light water drilling rig

1.1 Rig Application

1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.

1.1.2 Drilling bits can be chosen according to different strata.

1.2 Rig Features

1.2.1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.

1.2.2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.

1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

1.2.4 The handle centralized, easy to operate.

1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

Borehole diameter75,91,110,130,150,300mm
Drilling depth200,150,100,70,50,30m
Drill pipe diameter42,50,60mm
Angle range90°-75°
Size ( L*W*H )1433*697*1273mm
Weight(without power unit)525kg
Gyrator
Spindle speed(4-speed)71, 142, 310, 620r/min
Spindle stroke450mm
Upward max speed of spindle(no load)0.05m/s
Downward max speed of spindle(no load)0.067m/s
Max feeding force of spindle15KN
Max lifting force of spindle25KN
Max output torque of spindle1.25KN.M
Hoist(winch)
Max.lifting capacity(single rope)15KN
speed19, 38, 84, 168r/min
Hoist drum linear velocity(two levels)0.166, 0.331, 0.733, 1.465m/s
Drum dia140mm
Wire rope dia9.3m
Wire rope capability35m
Brake dia252mm
Brake belt width50mm
Oil pump
ModelYBC-12/125
Rated pressure12.5Mpa
Displacement12ml/r
Rated speed2000r/min
Power(diesel engine or motor)
Model(diesel engine)ZS1115
Rated power16.2kw
Rated speed2200r/min
model (motor)Y160-4
Rated power11kw
Rated speed1460r/min

Mob: 086-15933114663, what is app

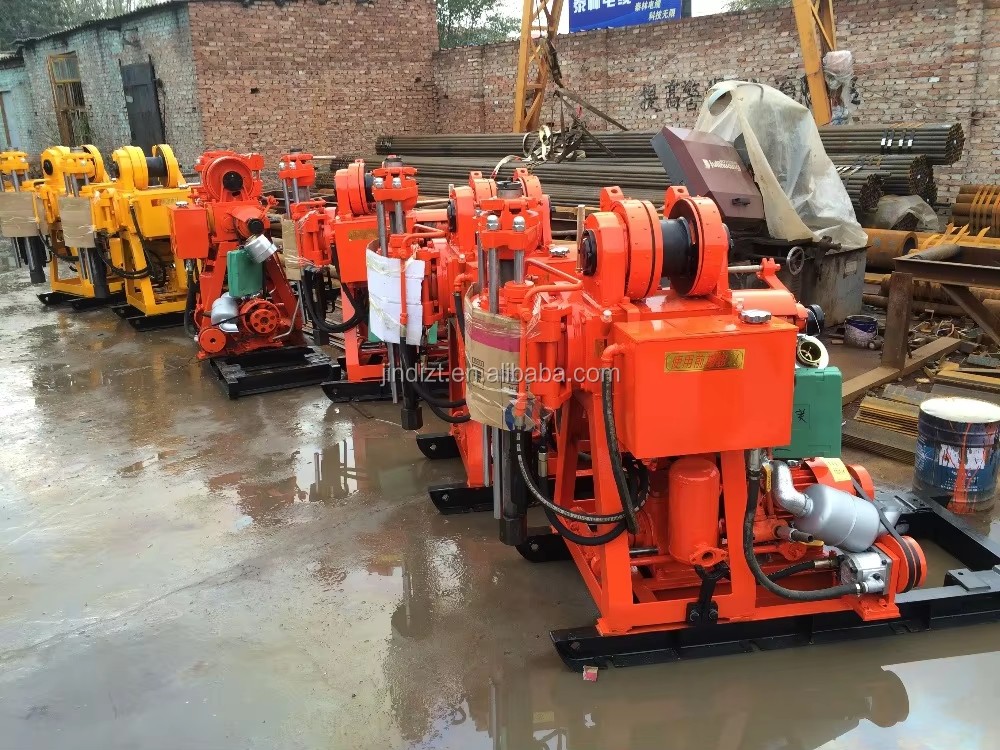

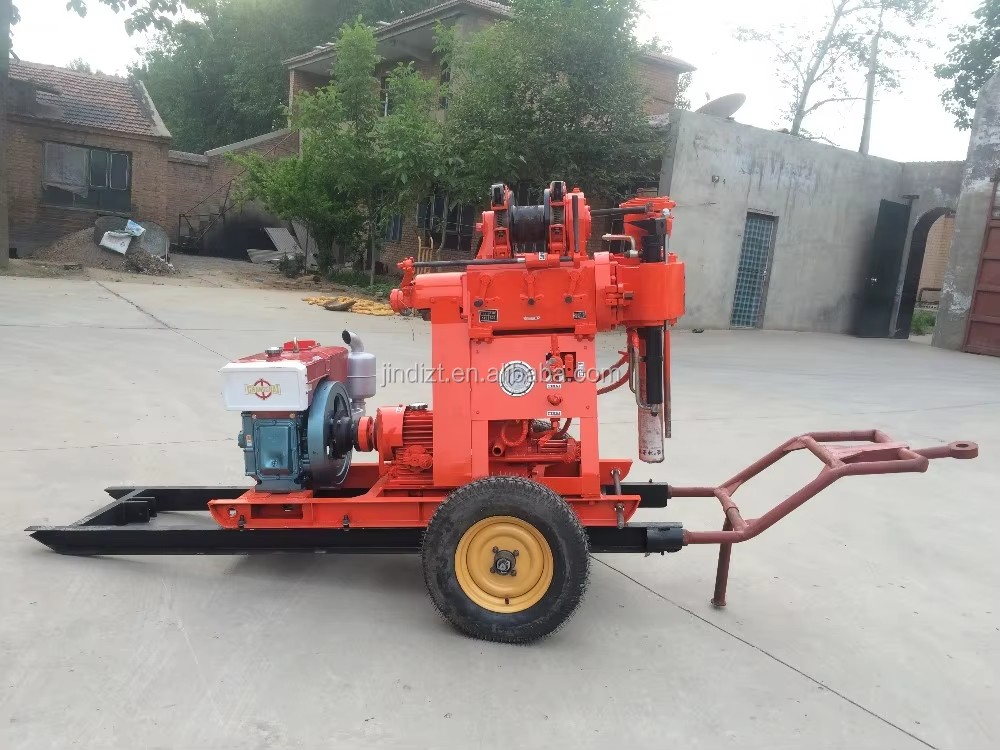

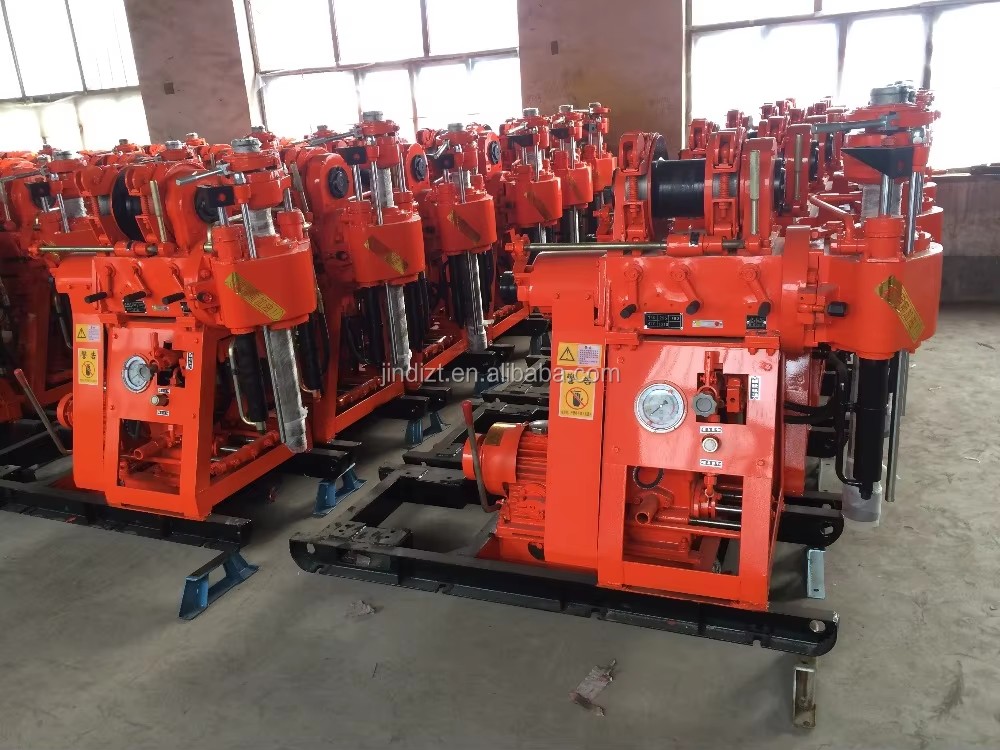

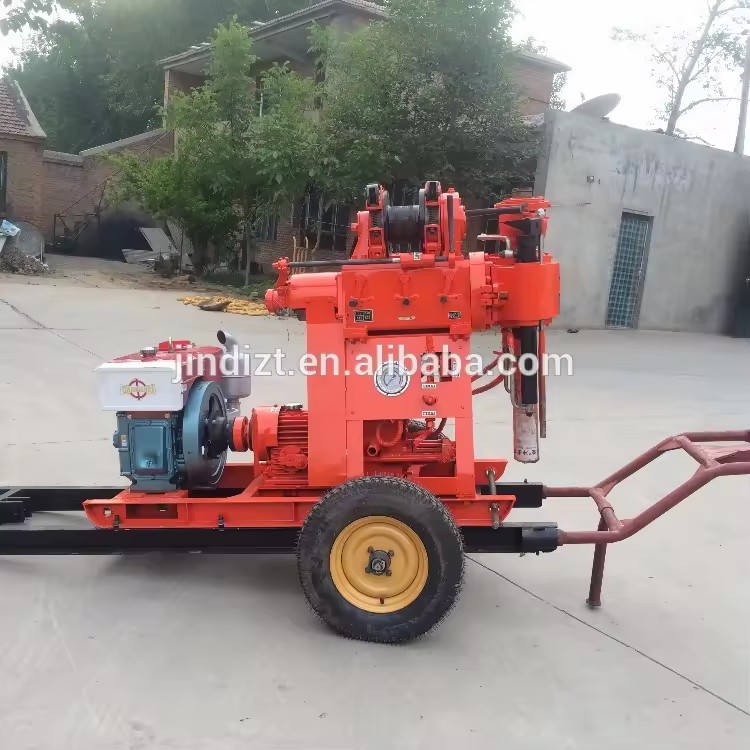

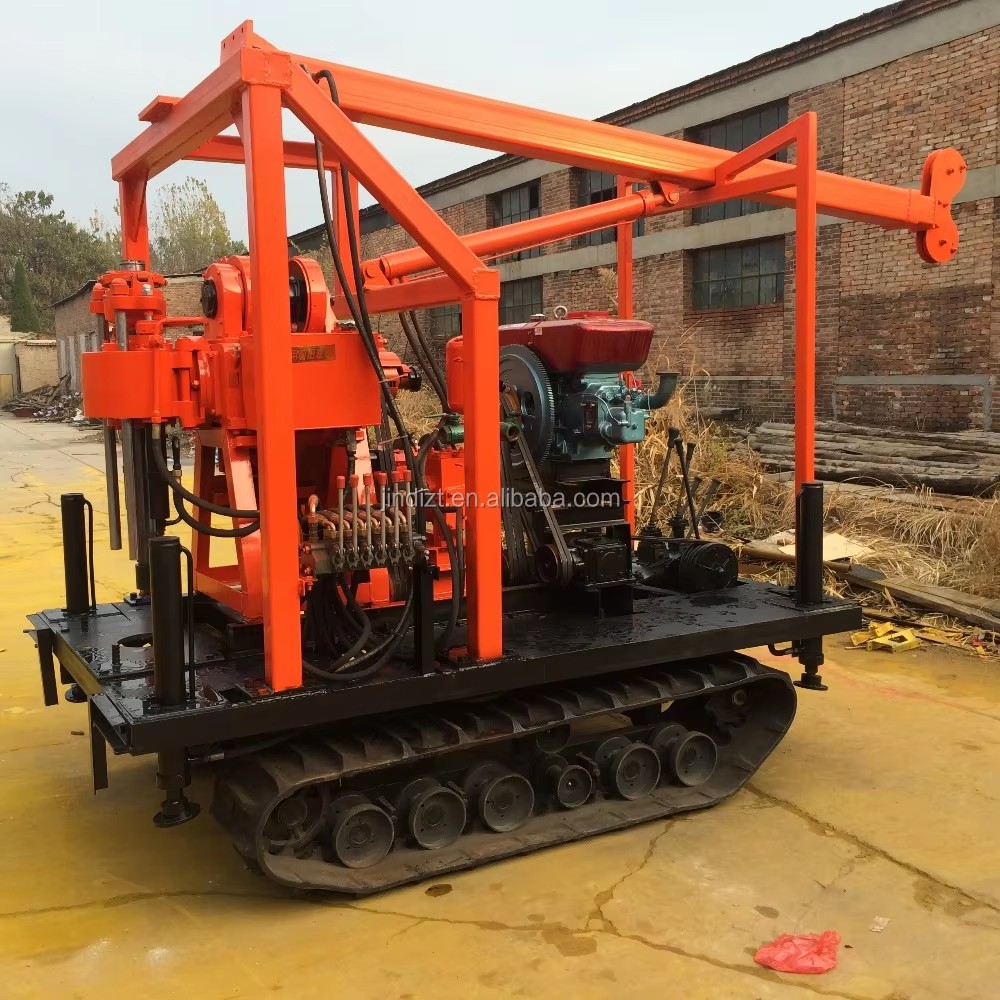

Description images
200m Water Drilling Rigs/drilling Water Wells/well Drilling Rigs for Sale
200m Water Drilling Rigs/drilling Water Wells/well Drilling Rigs for Sale
200m Water Drilling Rigs/drilling Water Wells/well Drilling Rigs for Sale
200m Water Drilling Rigs/drilling Water Wells/well Drilling Rigs for Sale
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    Lead time will be confirmed with your quotation.

  • Step 3

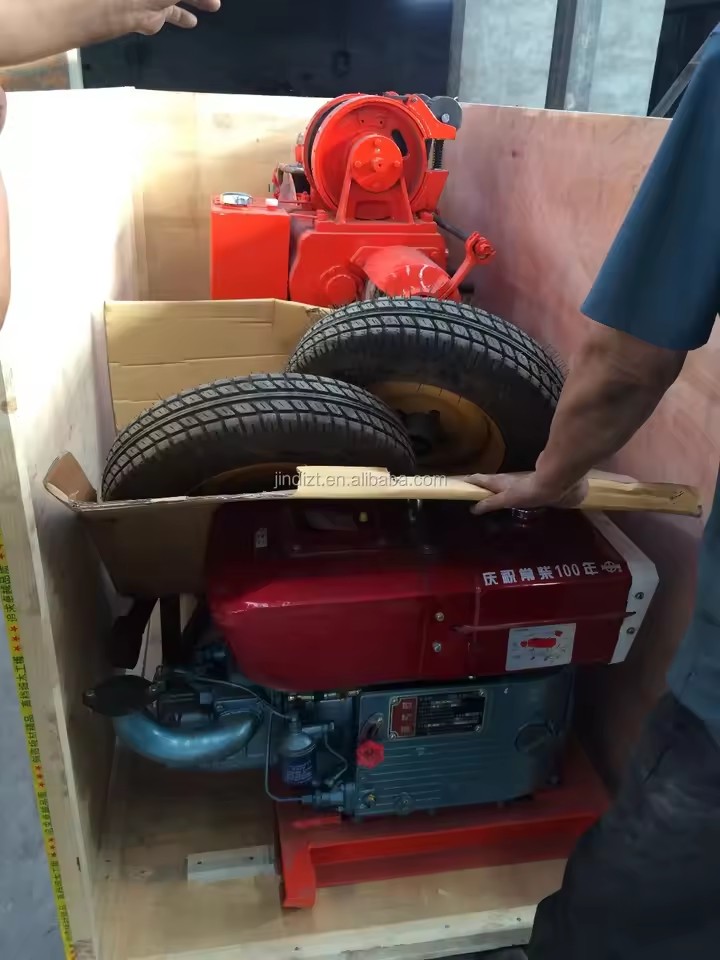

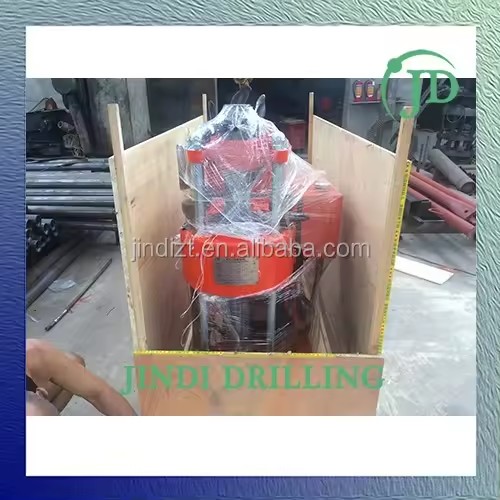

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.200m, 30-200m
Drilling Diameter
75mm, 300 mm, 100 mm, 50 mm, 60 mm, 450 mm
Power Type
Diesel
Voltage
380V
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Hebei
Weight
560kg
Dimension (L*W*H)
2*0.98*1.5m
Drilling Angle
75-90
Spindle speed
71, 142, 310, 620 r/Min
Drill pipe diameter
50mm 42mm 60mm
Model
XY-200
Engine
Diesel Power
Color
red
Spindle stroke
450mm
Packaging Details
wooden box or as customer's demands
Port of dispatch
tianjin
Selling Units
Single item
Supply Ability
3000 sets per Year
Model number
XY-200
Power (W) (Product option)
12.1KW
Minimum order
1 Units
