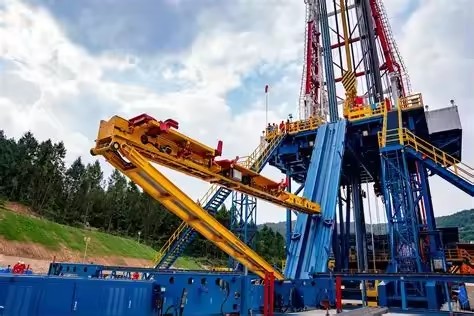

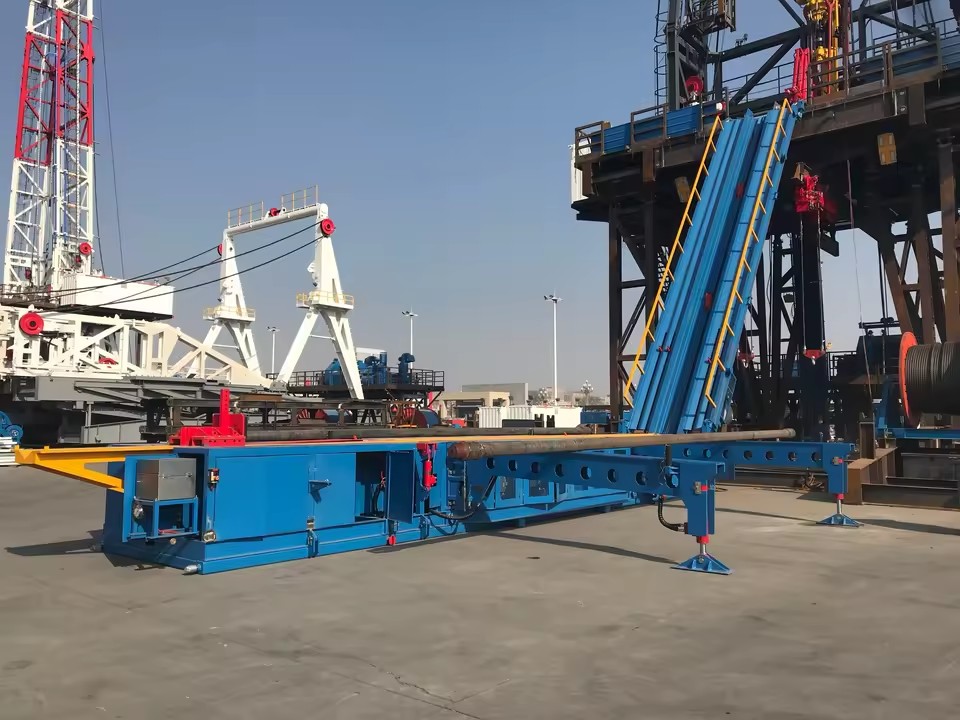

Hydraulic Power Catwalk Oil Drilling Rig High Efficiency Engine Motor Automatic Pipe Handling System 9m Drill Floor Height 20''

Available for enquiry 0.0 · 0 reviews
USD

$ 33,650.00 33650.0 USD $ 33,650.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Core components
Bearing, Motor, Gear, Engine, Gearbox
Voltage
380 V
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Color
White, Black, Blue, Yellow, Green
Product description

Highlights at a glance

  • 1. Automatic & Efficient: Adopts advanced hydraulic/electric drive system, single pipe conveying cycle is only 90-120 seconds, which is 3-5 times more efficient than manual handling. 2. Flexible & Convenient: Wireless remote control + wired control dual mode, easy to operate; modular folding design, small storage space, convenient for transportation and installation. 3. Wide Adaptability: Suitable for drill floor heights of 7m/9m/10.5m/12m, applicable pipe diameters of 2-3/8''~20'', and load capacity of 680kg~10000kg, compatible with most drilling rigs. 4. Safe & Reliable: Equipped with multiple safety protection devices (overload protection, emergency stop), explosion-proof design optional, in line with oilfield safety standards; API, CE, ISO 9001 certified, quality guaranteed. 5. Low Maintenance: High-quality materials and precision components, stable operation, low failure rate; 1-year warranty, professional after-sales team provides timely maintenance support.
    • Frequently asked questions

    The delivery time is 30~60 days after receiving the deposit, and it can be adjusted according to the order quantity and customization requirements.

    Yes, we provide customized services. We can adjust the drill floor height, load capacity, pipe diameter and other parameters according to your specific needs.

    Yes, we can send professional technicians to your site for installation guidance and technical training. The related costs can be negotiated separately.

    Our Power Catwalk has passed API, CE and ISO 9001 certifications, which meet international oilfield equipment standards and can be exported to various countries.

    The warranty period is 1 year. During the warranty period, we provide free replacement of damaged parts (excluding man-made damage). Our after-sales team will reply to your maintenance needs within 24 hours.

    The common payment terms are T/T and L/C. For large orders, we can negotiate a more flexible payment plan (such as 30% deposit, 70% before delivery).

    Daily maintenance is simple: regularly check the hydraulic oil (for hydraulic type) and lubricating oil level, clean the equipment surface and conveying components, and check the safety protection devices monthly to ensure normal operation.

    The main body is made of high-strength carbon steel, which is corrosion-resistant, wear-resistant and suitable for harsh oilfield working environments; key components adopt well-known brand parts to ensure long-term stable operation.
    Description images

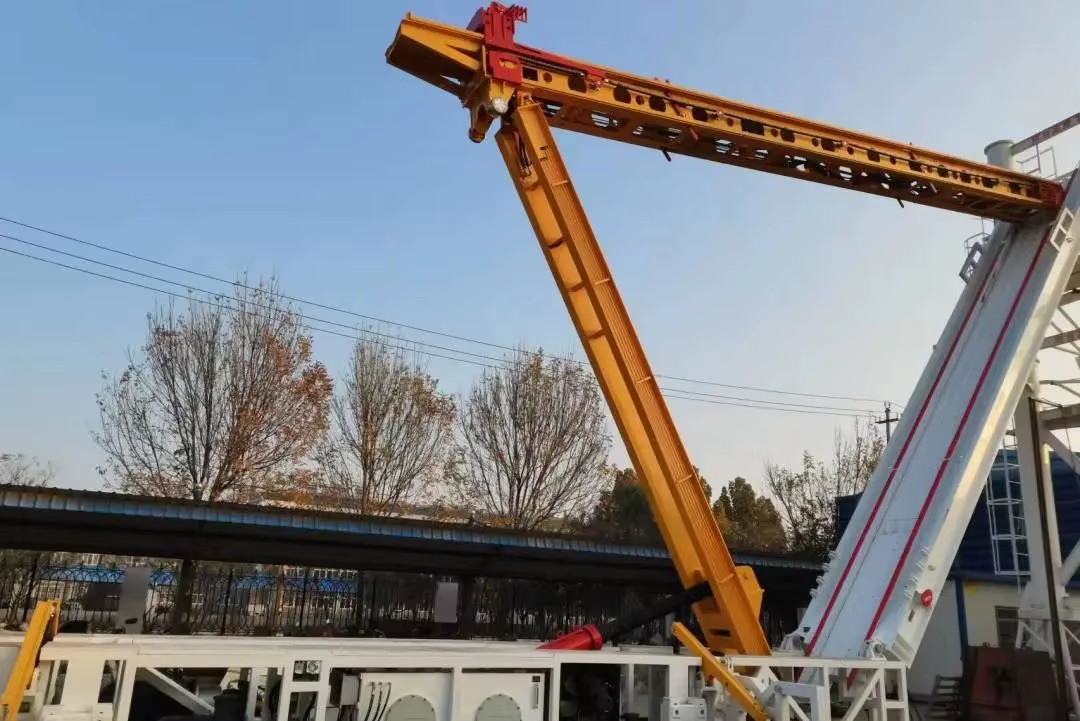

    Product detail

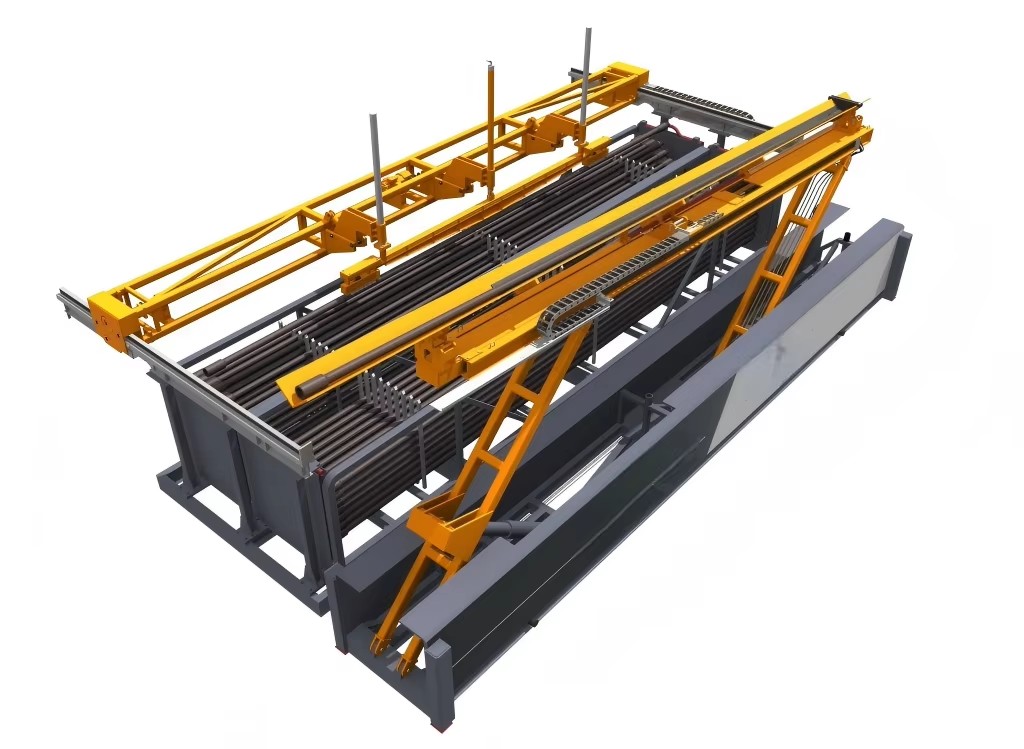

    Product detail

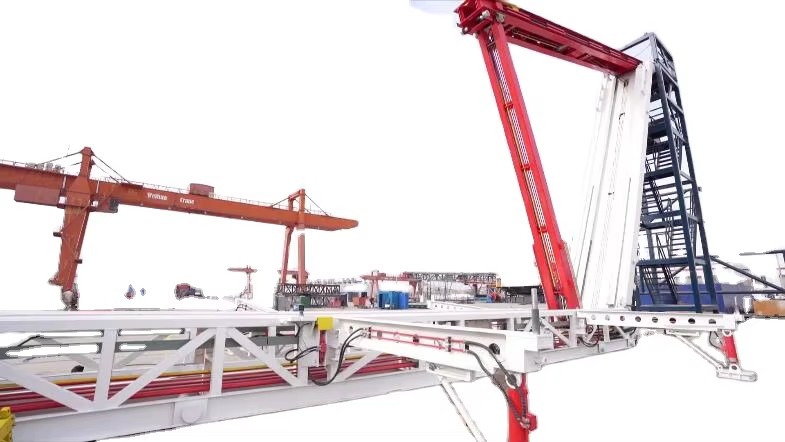

    Product detail

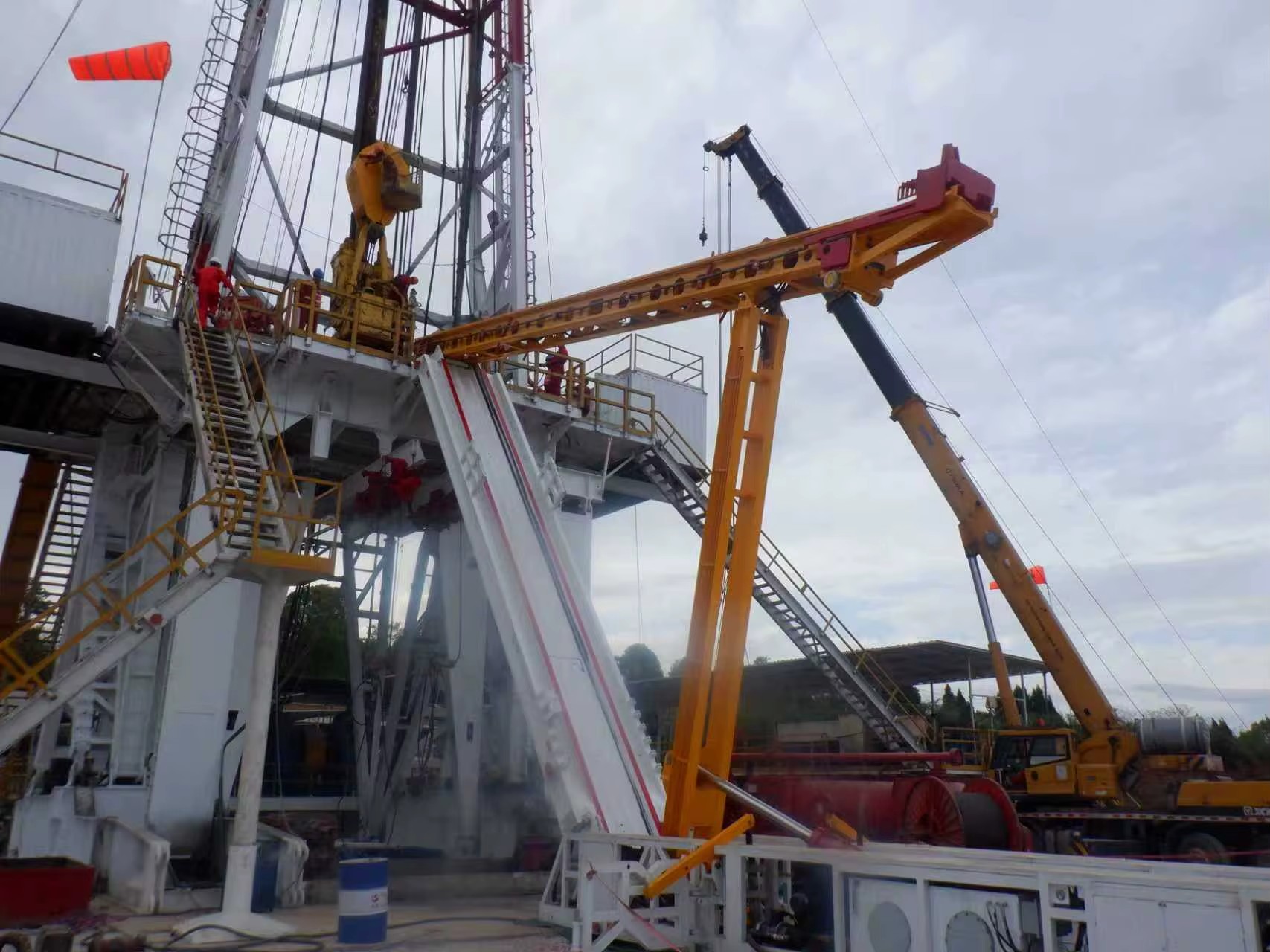

    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      20 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 22 fields
    Core components
    Bearing, Motor, Gear, Engine, Gearbox
    Voltage
    380 V
    Machinery test report
    Provided
    Warranty
    1 Year
    Video outgoing-inspection
    Provided
    Color
    White, Black, Blue, Yellow, Green
    Production Capacity
    5 set/ month
    Power (W)
    55
    Place of origin
    China, Shandong
    Weight (kg)
    15000
    Features
    high efficient
    MOQ
    1 Set
    Load capacity
    680kg ~ 10000kg
    Control Mode
    Wireless Remote Control + Wired Control
    Applicable Pipe Diameter
    2-3/8'' ~ 20''
    Drill Floor Height
    7m / 9m / 10.5m / 12m
    Single Pipe Conveying Cycle
    90s ~ 120s
    Motor power
    15kW / 22kW
    Working temperature
    20°C ~ 60°C
    Drive mode
    Hydraulic / Electric
    Selling Units
    Single item
    Model number
    DM9, DM4.5/10.5-L
    Lead time
    20 days
    Minimum order
    1 Units
