Oilfield ZJ40 1000HP Drilling Rig

ZJ40/1000HP Oil Exploration Drilling Rig

ZJ40/1000HP driven by ac frequency conversion motor, according to the function is divided into: derrick floor area, power and electrical transmission control, pump room area, mud circulation area, oil tank area and other auxiliary equipment. Adapted to the well depth within 4000m of lateral drilling, directional well and vertical well drilling operation.

The rig drawworks and rotary table adopts the form of independent drive. Winch driven by a 600 kw ac frequency conversion motor, rotary table driven by a 300 kw ac frequency conversion motor. Two sets of F - 500 mud pump by another two YJ23A500kW ac frequency conversion motor drive, respectively. Powered winch motor via a set of two gears transmission speed and the chain box powered winch, implementation of winch is second gear. Rotary table with motor and rotary shaft straight association-like structure.

Product features

1, Rig adopts modular structure, using pin connection between block and block, can realize quick move. Derik is front opening K type, the structure to suit two telescopic. Base for high and low a telescopic structure, installation, low on power drill itself, put up as a whole.

2, Drilling machine driven by ac frequency conversion mode and control, made a special work station of driller, the trachea, tubing adopts the rapid joint and remove the obvious installation tag.

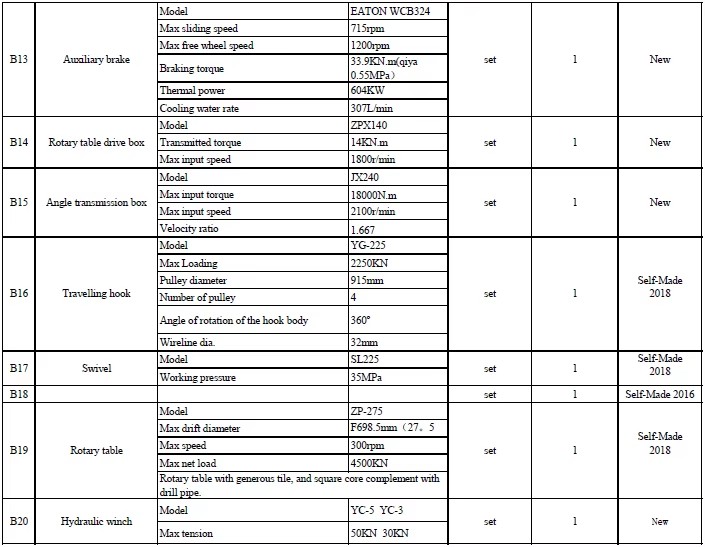

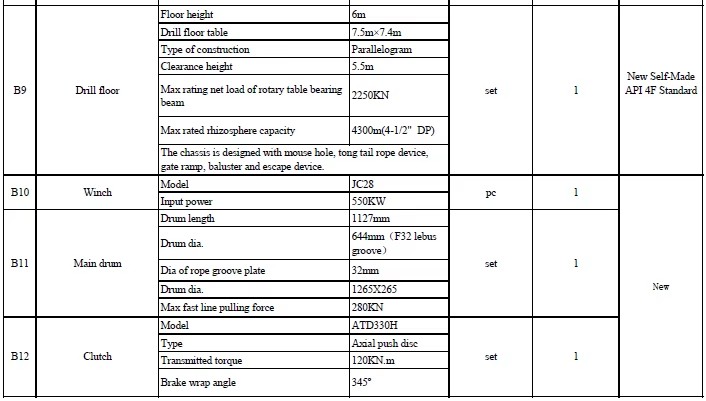

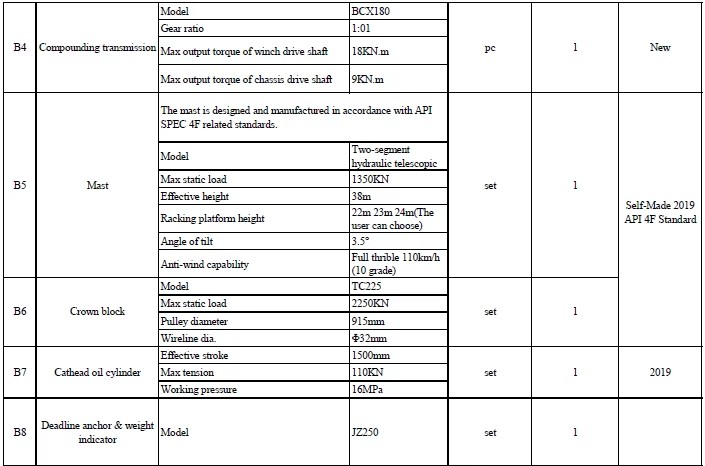

Specifications
