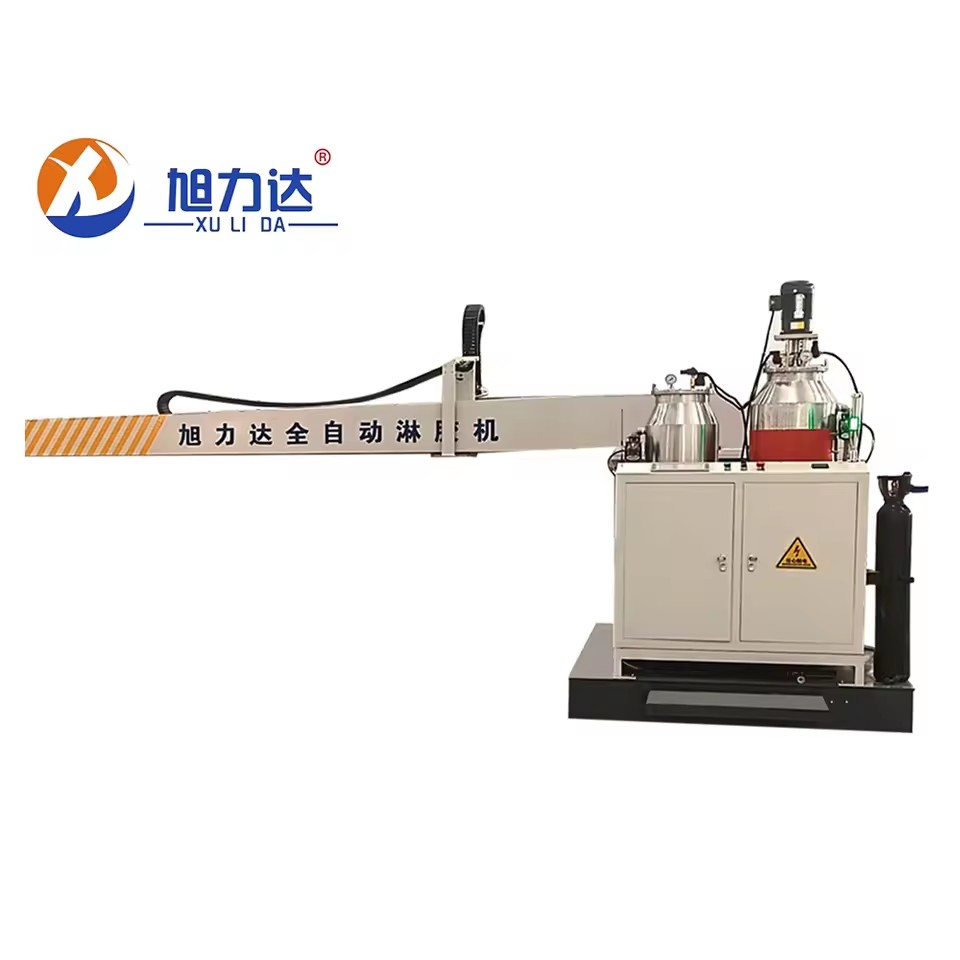

Automatic Proportioning Stainless Steel Honeycomb Panel Air Duct Glass Magnesium Board Lamination Air Duct
Glue Spray Machine
Analysis of Automatic Coating and Manual Scraping Processes
| Category | Automatic Coating | Manual Scraping | Remarks |
| Coating Method | Single operator can complete automatic proportioning, glue mixing and glue spraying | Requires at least 3-4 people for mixing and scraping, and the scraping is uneven | Operating the equipment does not require glue mixing and glue brushing workers, only compounding workers are needed. |
| Glue Application Precision | In the coating process, the distance from the edges of the board can be controlled to prevent glue spillage and ensure aesthetic appearance | Manual coating can lead to edge contamination due to uneven application |
| Glue Usage | Accurate data on glue usage per square meter allows for strict control of costs, precise glue ratio, and uniform coating without waste | No accurate data on glue usage, difficult to control the actual amount used by workers, prone to incorrect ratios and high waste | Taking Hebei Hanglong Kaogel as an example, the equipment production speed is 7.5 square meters per minute, and the glue output is 2400 grams per minute, that is, the glue consumption per square meter is 320 grams |
| Automatic Cleaning | Automatic cleaning function, solvent collected centrally, no environmental pollution | No cleaning device, high waste of glue containers, production environment prone to contamination |
| Production Efficiency | The production speed of the equipment is 1-5m, and the maximum production efficiency is 10 square meters/min | It took three or four people more than 10 minutes to scrape the glue manually. |
| Comparative Advantage | Automatic coating, compared to manual scraping, has the advantages of higher efficiency, reduced glue costs, and labor costs |

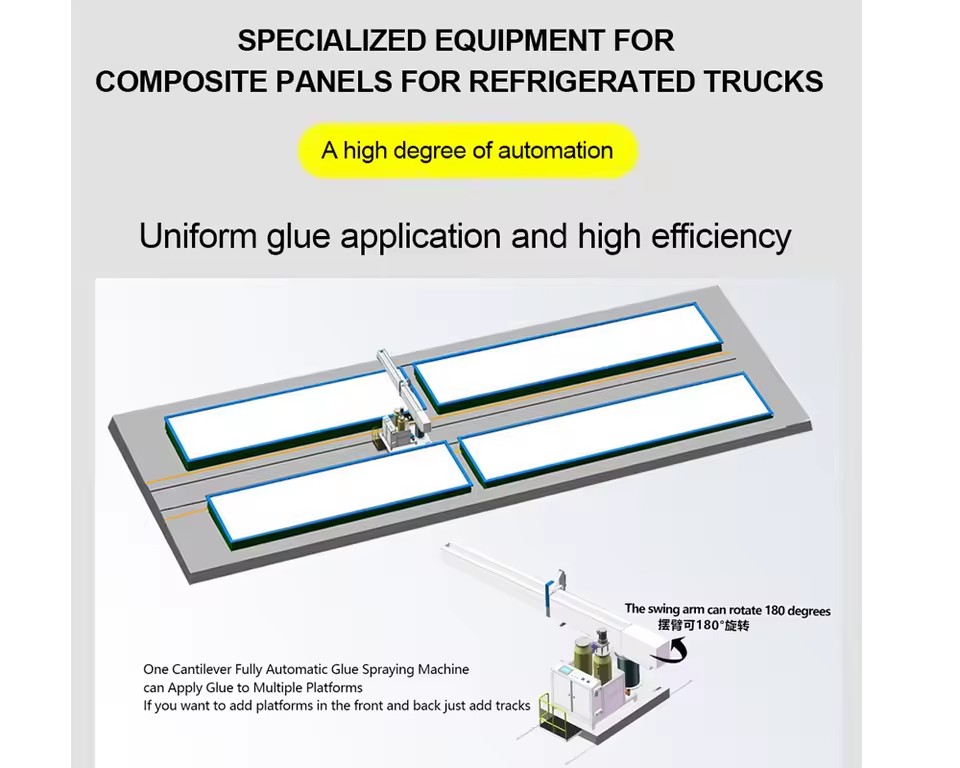

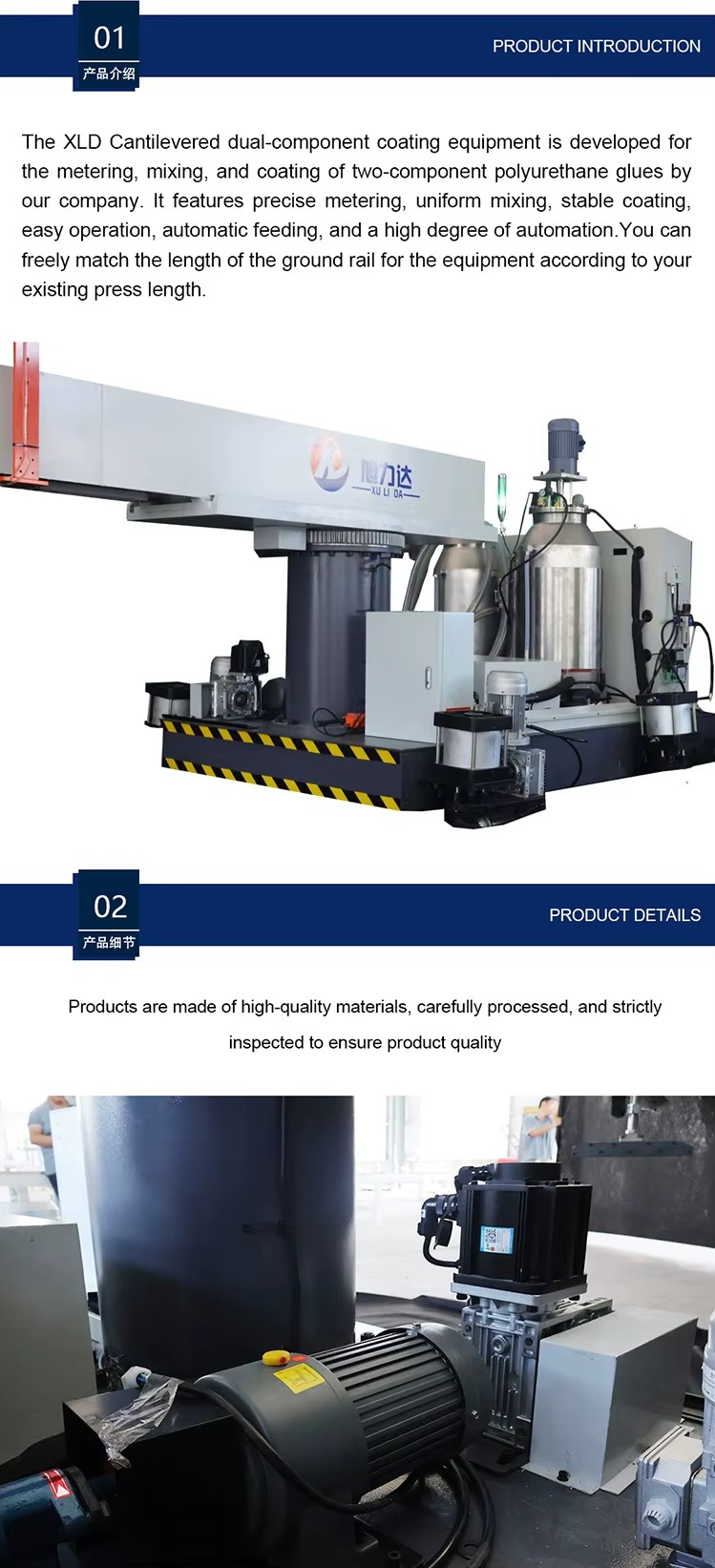

| Equipment Model | Cantilevered type | Power Supply | 380v 50Hz | Air Source | 0.6 —0.8Mpa |
| Glue Output | 0-6000g/min | Flow Accuracy | ≤ ± 3% | Equipment Power | 10kw |
| Equipment Size | The length of the on-site press * 1.6m*2.4m | Glue Viscosity Range | A glue ≤30000mpa.s (at 24°C ambient temperature) | Key Selling Points | Top Quality and Competitive Price |

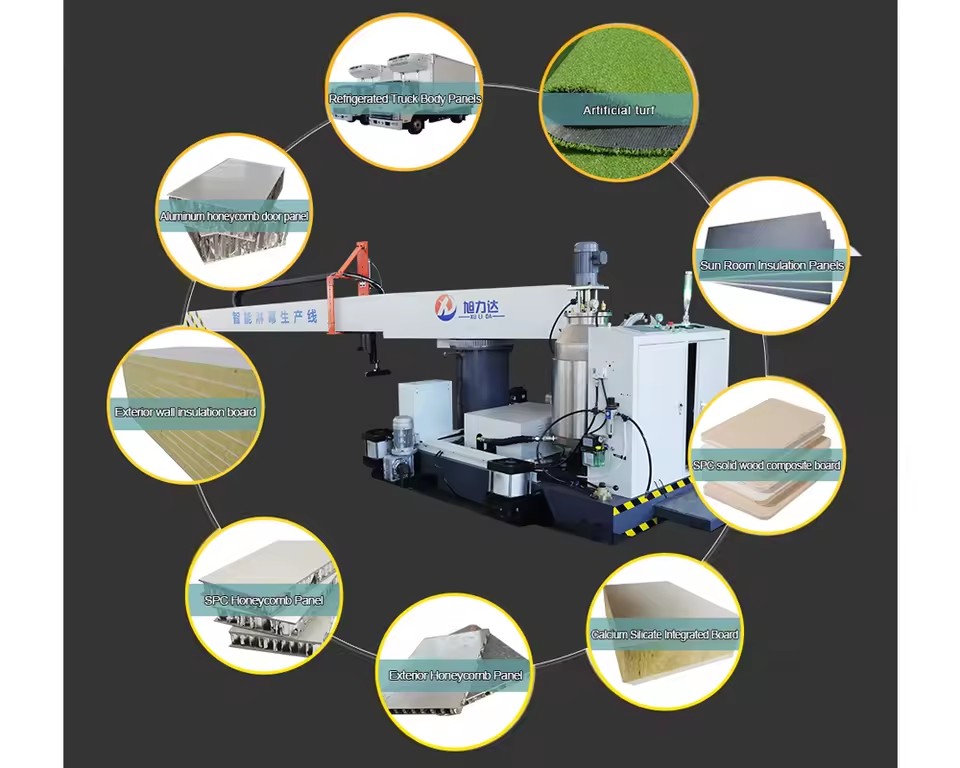

| A/B glue Ratio Precision | Ratio Precision: ≤±2% (e.g., 100: 25±2) | Applicable Industries | Refrigerated Truck Body PanelsRefrigerated Truck Body Panels Sandwich Board Integrated Insulation Panels Composite Panel | Set the glue speed | 1m-5m/min |
Functions of the Coating Machine Equipment
tomatic glue spraying mode · freely set the glue spraying size, only spray the effective area of the board, the glue spraying positioning is accurate, and the glue spraying margin can be freely set.
2.Quick positioning mode · The equipment is equipped with a wireless remote control handle to remotely control the start and stop of glue spraying, glue spraying positioning, etc.
3.The glue spraying speed and glue dosage can be freely set, and the glue spraying amount can be precisely controlled in automatic mode.
4.The coating head is equipped with a pulse-type air mist cleaning function, with freely settable cleaning times and cycles, using sealed containers to collect the waste and prevent solvent pollution during cleaning, no need for manual cleaning and solving common clogging issues in similar equipment.
5.The equipment uses imported mixing tubes for mixing, ensuring even mixing and avoiding unevenness due to significant disparity in glue ratios (e.g., 4:1, 5:1, 10:1).

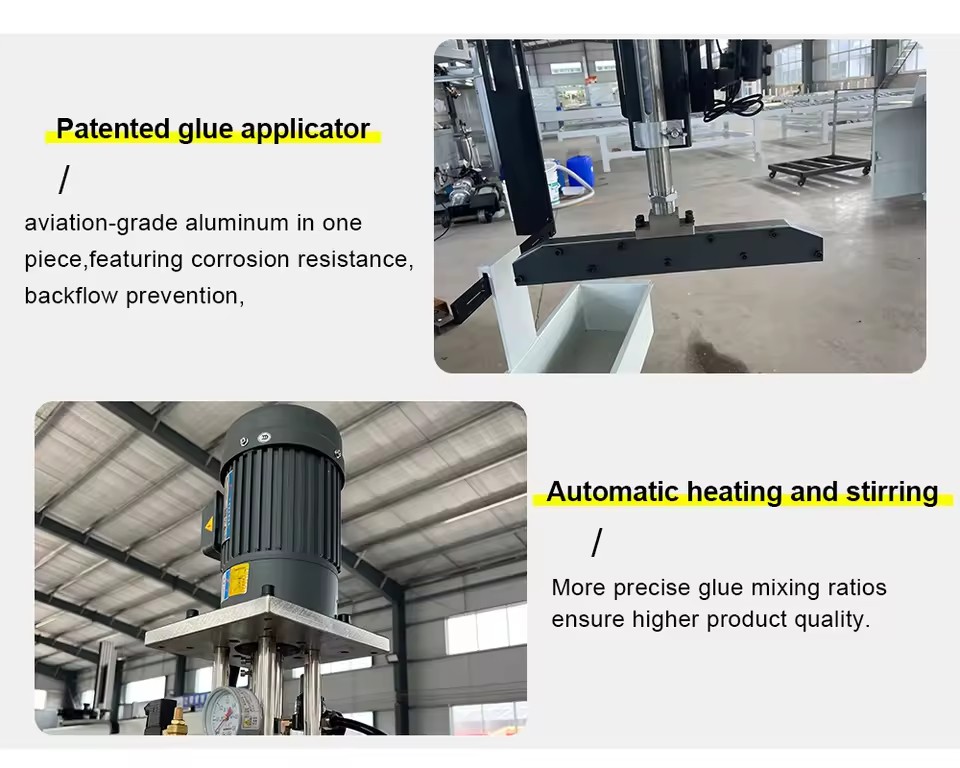

6.The coating head is made of aviation-grade aluminum in one piece, with an imported anti-stick coating on the surface (unlike the plastic coating heads combined on the market), featuring corrosion resistance, backflow prevention, and a quick-release structure for easy cleaning. (Patented product of the company)
7.The equipment has online ratio monitoring and proportion testing functions, and will give an immediate alarm when an abnormality occurs to prevent batch production of waste products.

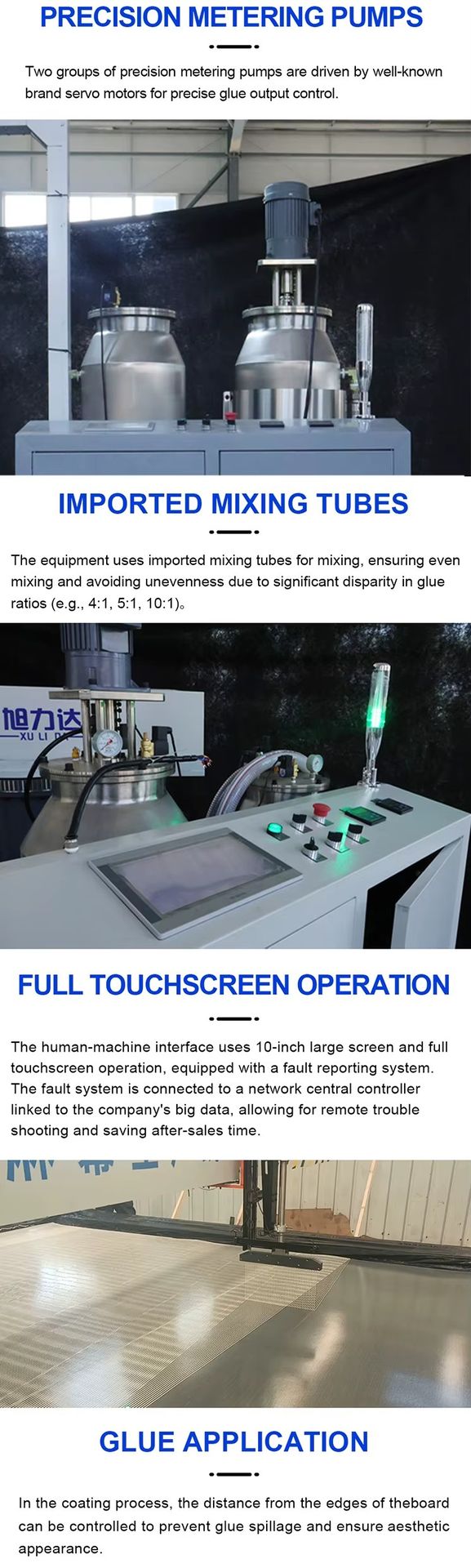

8.Two groups of precision metering pumps are driven by well-known brand servo motors for precise glue output control.
9.The control system and electrical components all use imported brands, ensuring stable operation of the equipment.

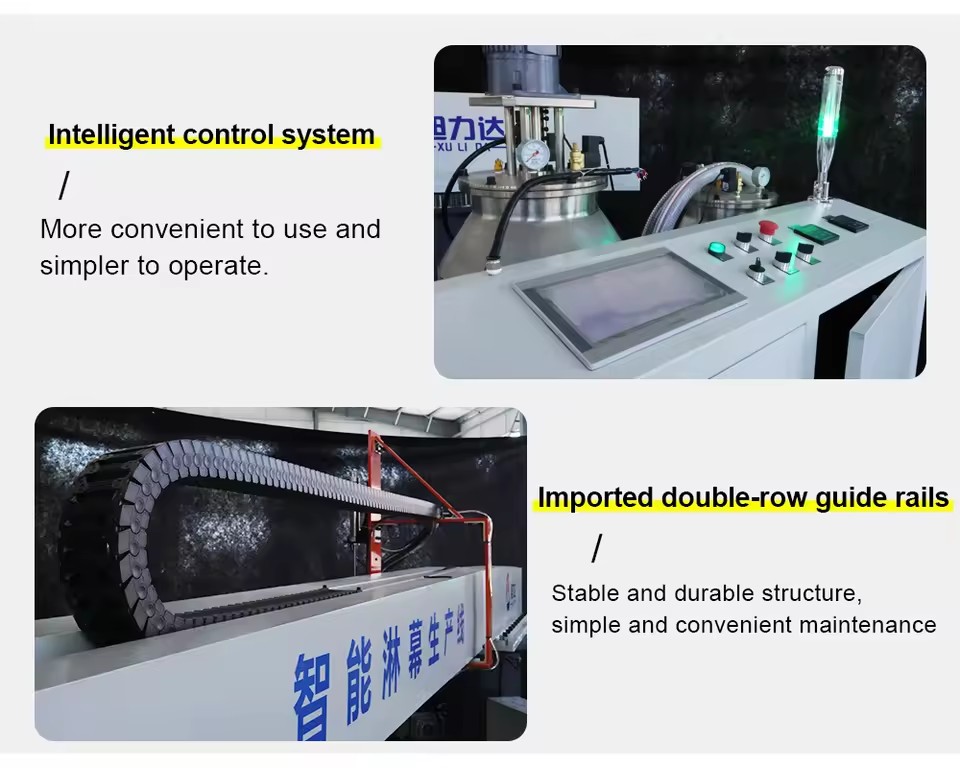

10.The human-machine interface uses 10-inch large screen and full touchscreen operation, equipped with a fault alarm system.
The fault system is connected to a network central controller linked to the company's big data, allowing for remote trouble shooting and saving after-sales time.
11.Selects well-known brand special precision metering pumps for accurate metering, stable quality, and long life.
12.The two sets of pipelines are equipped with hydraulic sensors. When the pipeline is blocked or the pressure is too high, it can automatically stop and alarm to protect the equipment.
es imported double-row guide rails with servo motor drive, equipped with an automatic oiling machine, ensuring a stable and durable structure with simple and convenient maintenance.
14.The glue spraying conveyor is driven by a servo motor, which drives the roller through a precision reduction mechanism to achieve accurate positioning of the glue spraying.
15.The equipment is configured with automatic and manual modes, with the automatic mode for production and the manual mode for debugging and maintaining the equipment.
