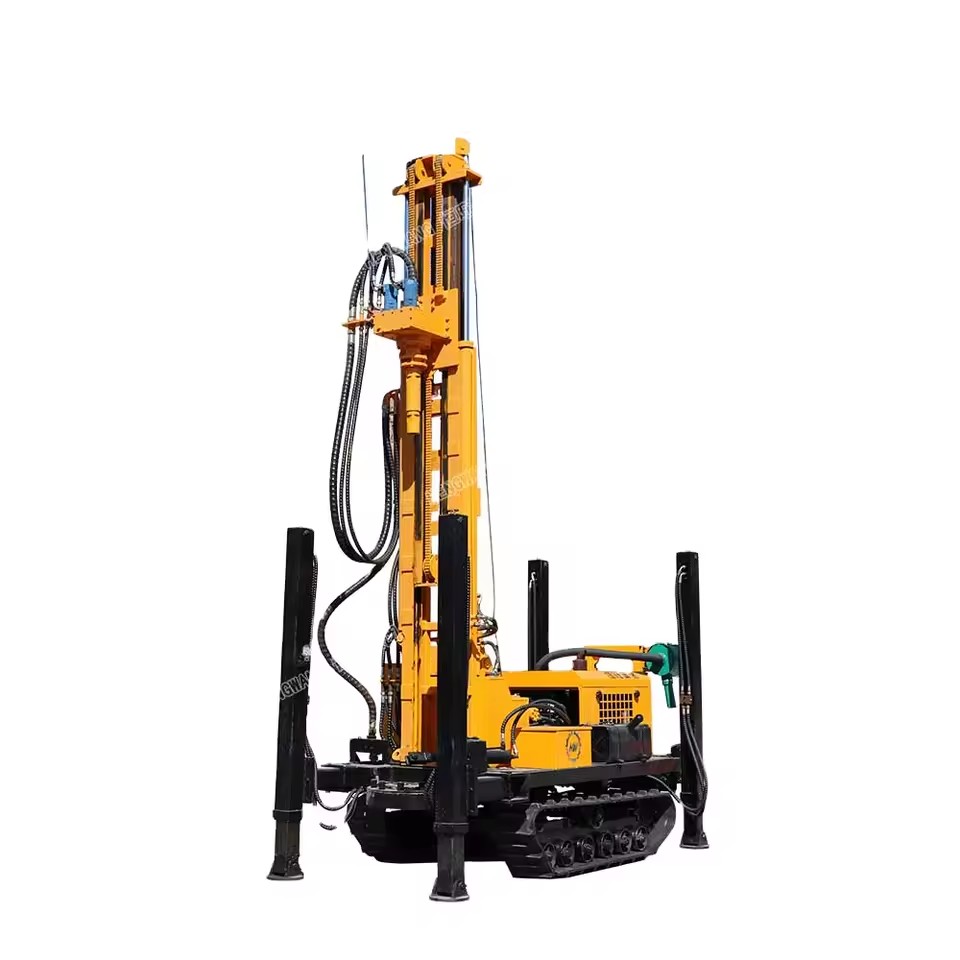

Cheap Crawler Pneumatic Mine Rock Rotary DTH Water Well Borehole Drilling Rig with Air Compressor

Name: Cheap Crawler Pneumatic Mine Rock Rotary DTH Water Well Borehole Drilling Rig with Air Compressor
SKU: 298T-GFGY-BCJ8
Price: 19450.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 19,450.00 19450.0 USD $ 19,450.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Water Well

Type

Rotary Drilling Rig

Drilling Depth

Max.220m, 220m

Drilling Diameter

75mm, 300 mm, 130-300mm

Power Type

Diesel

Core components

Motor, Engine, Pump

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Approx. shipping fee: $ 337.51 for 1 set · Estimated delivery: Oct 11–Dec 2 (39–91 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

HQZ220L Pneumatic Drill Rig

Specification for water well drilling rig
No	Model	HQZ220L
1	Overall weight （T )	4.2
2	Dimension (mm )	380017002350
3	Drilling diameter (mm )	130-294
4	Drilling depth (m )	220
5	One-time advance length of the drill(mm)	3000
6	Traveling speed （km/h )	2.5
7	Minimum Ground Clearance (mm）	250
8	Working Air Pressure (mpa )	1.7-2.5
9	Air consumption (m³/min)	15-27
10	Main machine power （kw)	Yunnei 60Kw

Model	HQZ-180L
Drilling depth	180m
Drilling diameter	130-245mm
Power	42kw
Dimension	380016002350mm
Weight	3.8t

Model	HQZ-320L
Drilling depth	320m
Drilling diameter	140-350mm
Power	85kw
Dimension	420019002600
Weight	9t

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 337.51 for 1 set · Estimated delivery: Oct 11–Dec 2 (39–91 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Usage

Water Well

Type

Rotary Drilling Rig

Drilling Depth

Max.220m, 220m

Drilling Diameter

75mm, 300 mm, 130-300mm

Power Type

Diesel

Core components

Motor, Engine, Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Energy Saving

Place of origin

China, Shandong

Weight

3500 kg

Dimension (L*W*H)

3800*1700*2350

Engine Power

60Kw

Application

rocks, Mountains

Drill rod length

3/4/4.5/6m

Air consumption

15-27m3/min

Selling Units

Single item

Single package size

60X60X60 cm

Single gross weight

100.0 kg

Model number

HQZ-220L Water well drilling rig

Power (W) (Product option)

60kw

Certifications & Compliance

Lead time

7 days

Minimum order

1 Units
