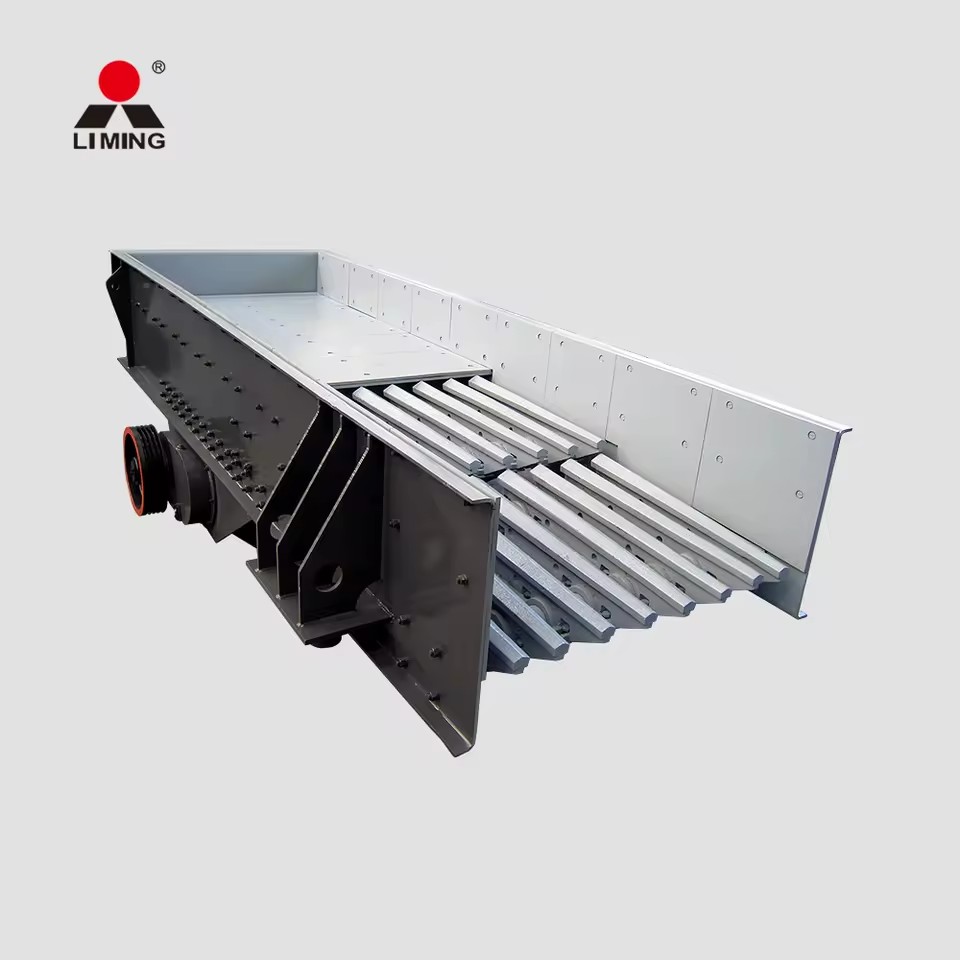

Mining ore screen grizzly quarry vibrating feeder price

Applications of Mining ore screen grizzly quarry vibrating feeder price

Mining ore screen grizzly quarry vibrating feeder price summarizing the design, production, sales and service experience in the mining industry for many years, Mining ore screen grizzly quarry vibrating feeder price is

Advantages of Mining ore screen grizzly quarry vibrating feeder price

1.Big feeding ability, high efficiency

The Mining ore screen grizzly quarry vibrating feeder price all adopts the 4-pole motor which can enhance the rotary speed of the eccentric shaft immensely; The 2-stage grid bars and the installation angle highly promote the feeding ability and the working efficiency.

2. Adjustment control is convenient and accurate

Mining ore screen grizzly quarry vibrating feeder price adopts Y series motor and frequency conversion controller, which is easy to adjust and more accurate in speed adjustment.

3. High reliability with enhanced supporting device design

Side plate and rear supporting board of the feeder adopt 16Mn steel plate; bottom plate and side guard plate adopt NM360 steel plate, which has high strength. It improves the body wear, and deduces the maintenance. The bar adopts ZGMn13-4 steel plate, which has stronger structure bearing, and lengthens the life.

4. Stable operation, easy maintenance

Mining ore screen grizzly quarry vibrating feeder price has simple and compact structure, small size, light weight, motor undercarriage fixed to the foundation, does not participate in vibration, increasing the reliability of equipment operation.

Working principle of Mining ore screen grizzly quarry vibrating feeder price

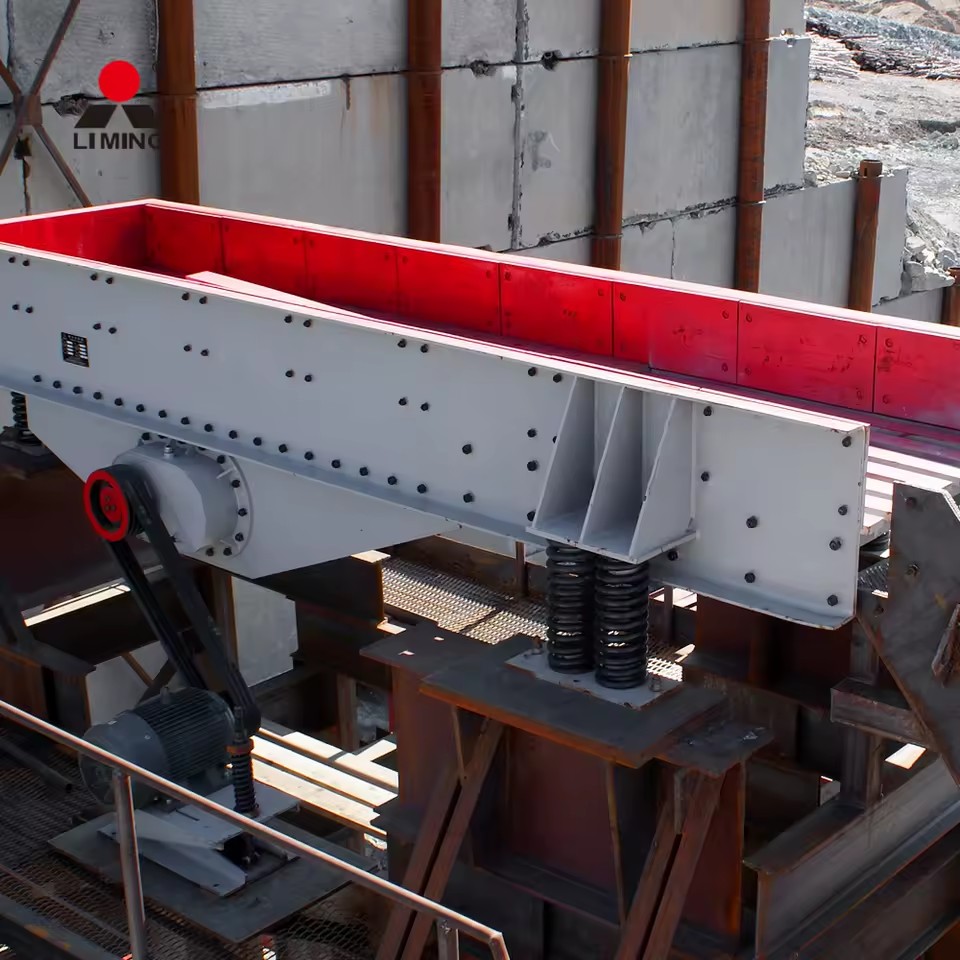

Mining ore screen grizzly quarry vibrating feeder price dual eccentric shaft exciter generates excitation force. A gear pair-connects the two eccentric shafts, enables the shafts rotate to opposite direction with same speed. Through motor driving, the excitation force generated constantly, the material slides and bounces ahead to crusher on the feeder groove. When material go through the feeder’s grid bars, the smaller material will fall down through the gap between grid bars and be sent to next crushing process. It enables the feeder to pre-screen material and fully ensures the crushing plant’s high crushing efficiency and capability.

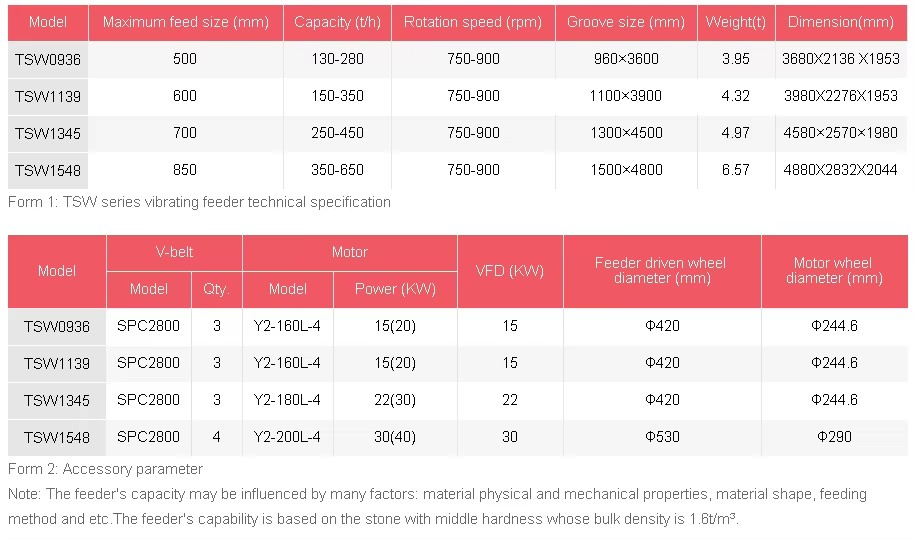

Specifications of Mining ore screen grizzly quarry vibrating feeder price

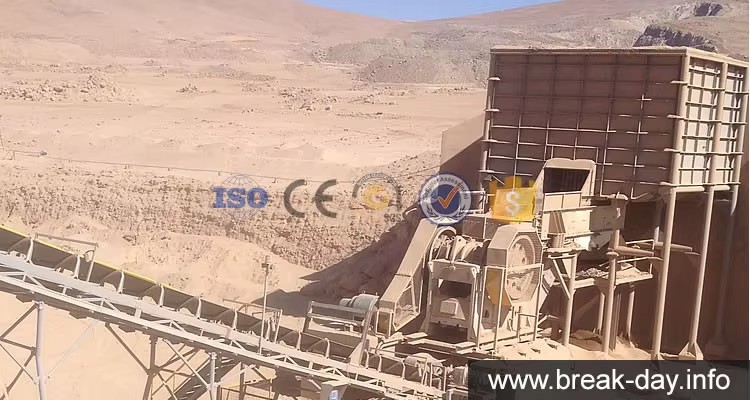

The project case of Mining ore screen grizzly quarry vibrating feeder price

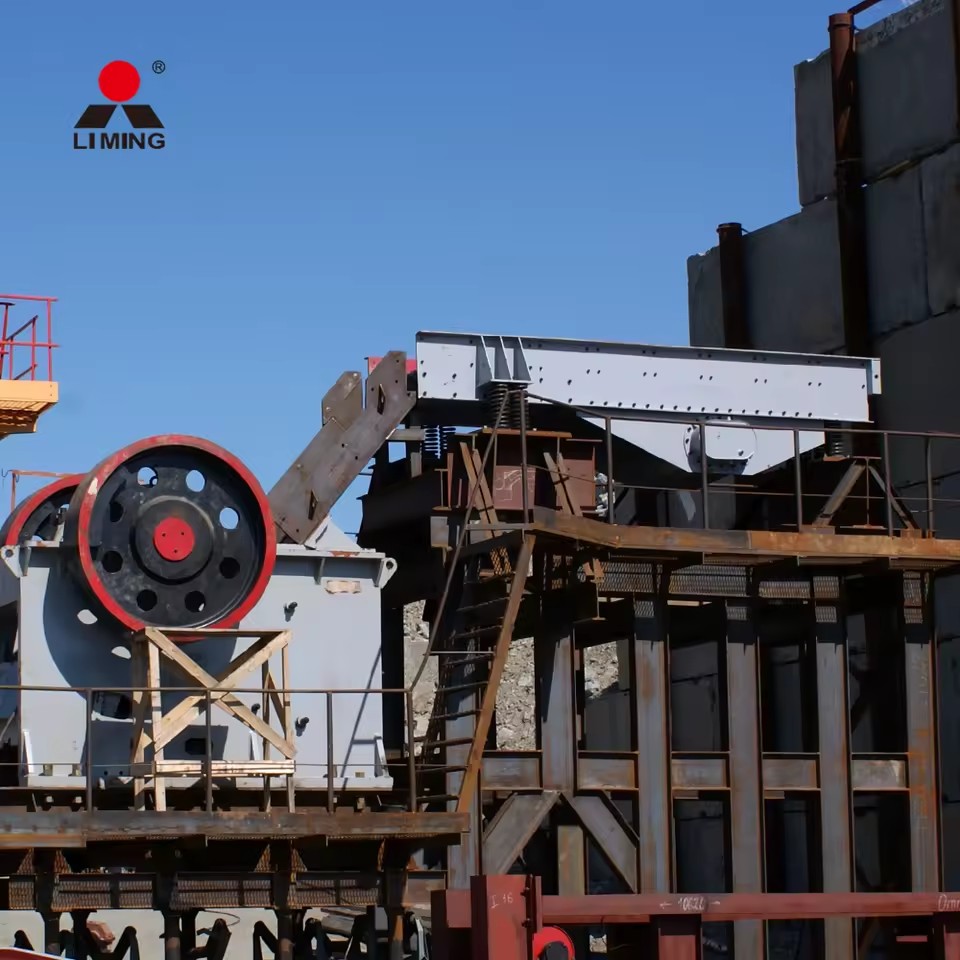

100TPH feldspar crushing line in Jambi

The 100TPH stone crushing line for feldspar processing runs stable with few breakdowns. The finished products are well distributed, meeting customer’s needs of making ceramics and floor tile.

Equipment: Vibrating feeder GZD 960X3800, jaw crusher PE600X900, 4 sets secondary jaw crusher PEW250X1200, 2 sets cone crushers HPT220(F), Vibrating feeder GZD100-4(L), 3 sets vibrating screen 2YZS1860, 2 sets cone crusher HPT300(F), roller crusher 2PG0608

Using Time: since March 2015 Processed Material: feldspar

Final products size: 0-5mm Capacity: 100tph

Place of use: Jambi, Applications: Used for ceramics and floor tile

Mining ore screen grizzly quarry vibrating feeder price is exported to more than 130 countries and districts all over the world. We promise to ship about 45 working days after payment. The payment can be L/C, T/T and other negotiation.

Mining ore screen grizzly quarry vibrating feeder price

Mining ore screen grizzly quarry vibrating feeder price has obtained Patent Certificate, ISO international quality system certification, European Union CE certification, Russian GOST certification and many other honor certificates.

♦

♦ We devote to create the biggest value with least cost for customers.

♦ We have a professional team to ensure your best pre-sale service, sale service and after-sale service.

Welcome to visit
