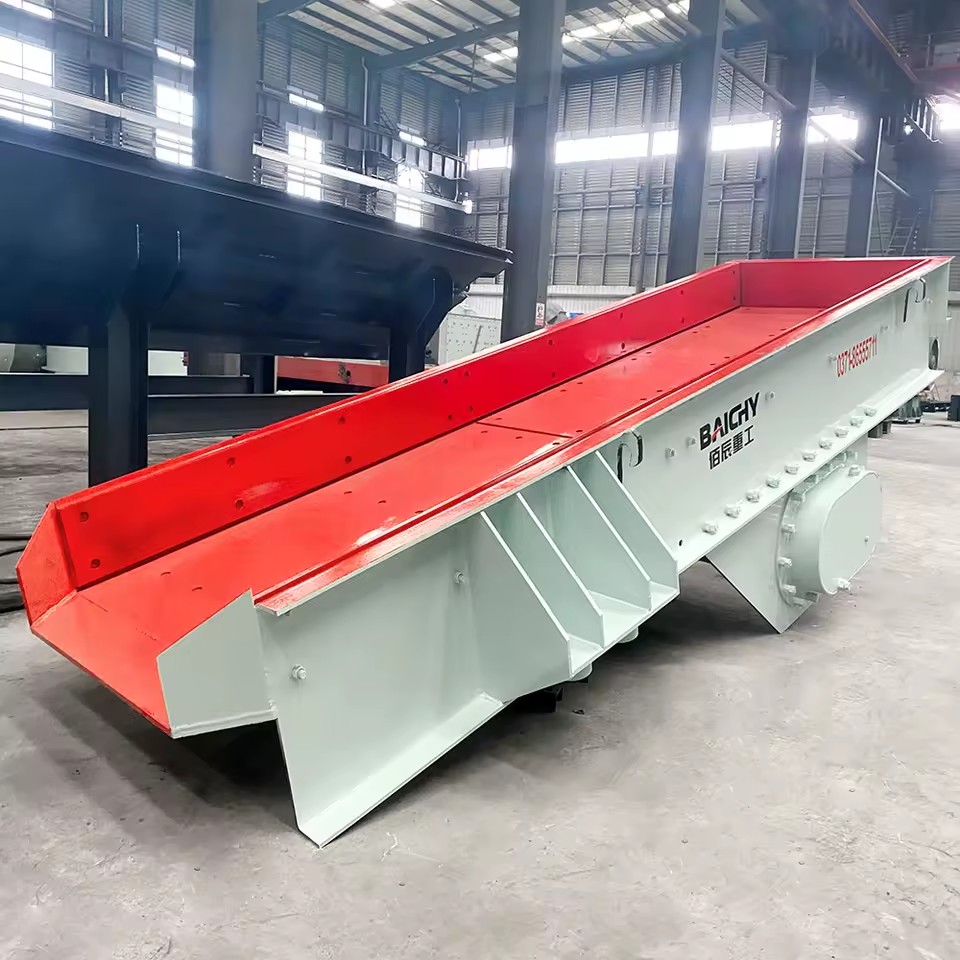

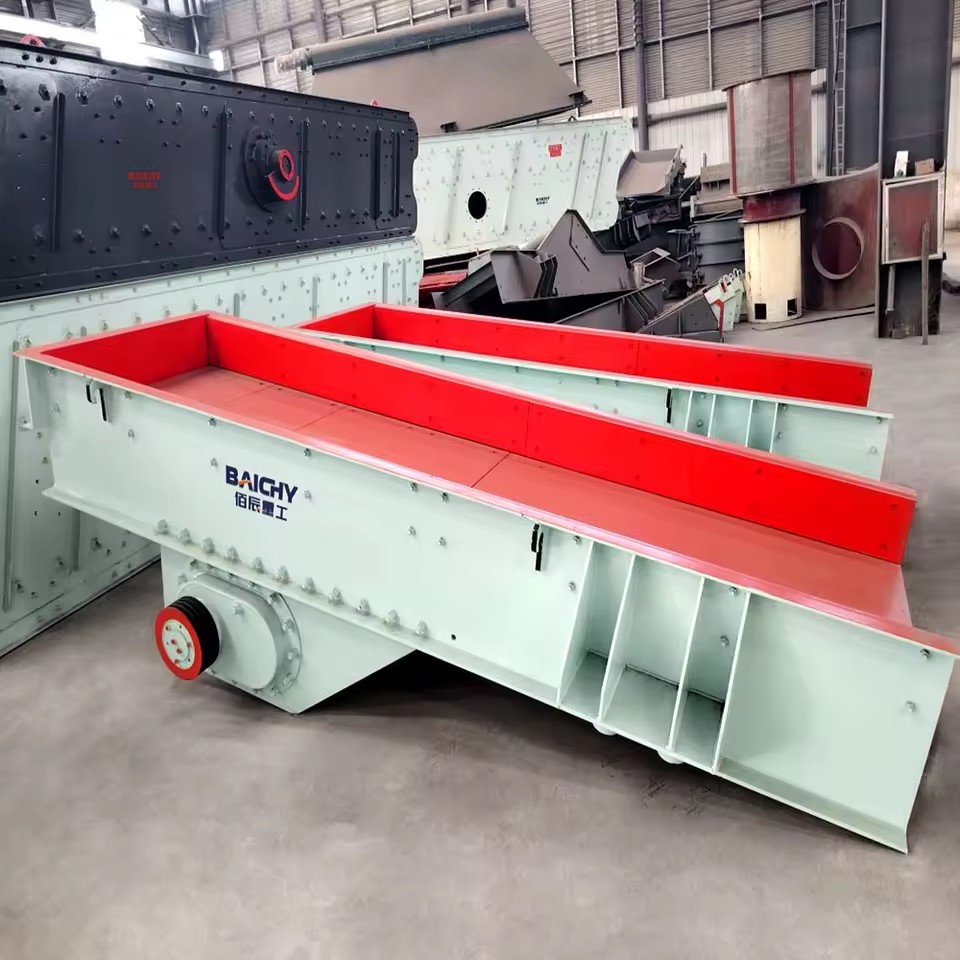

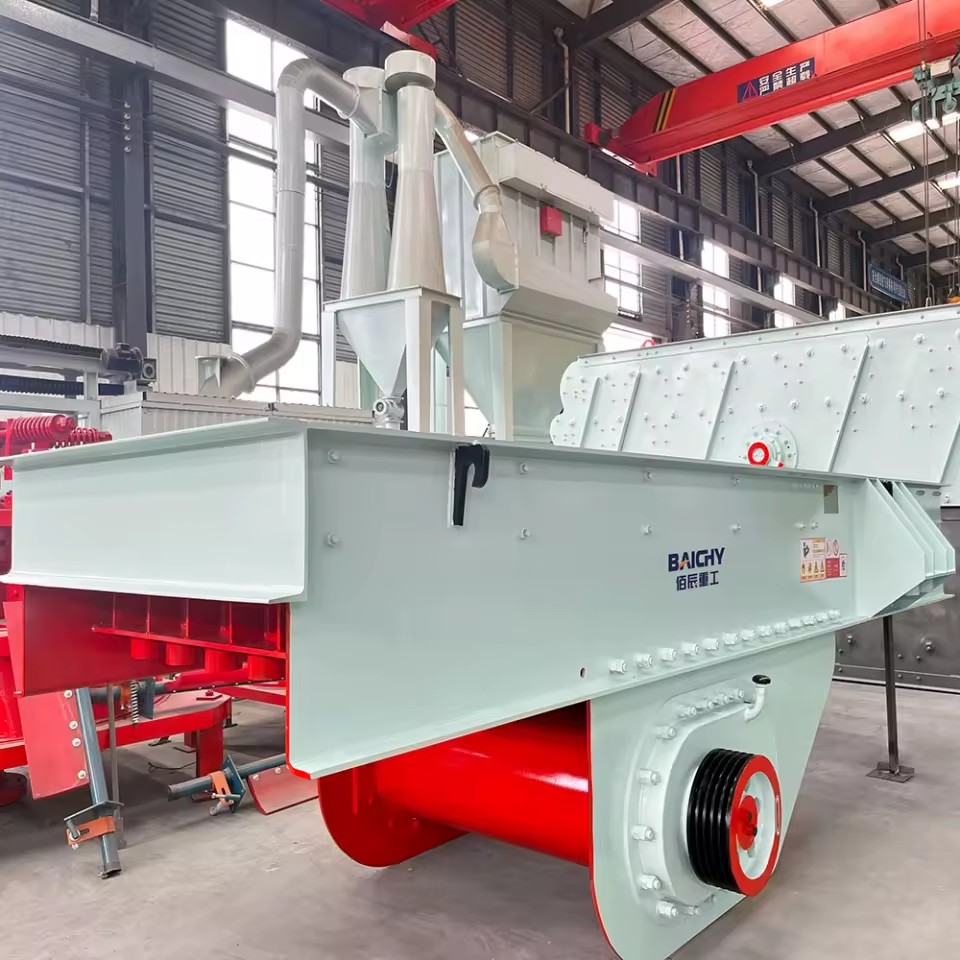

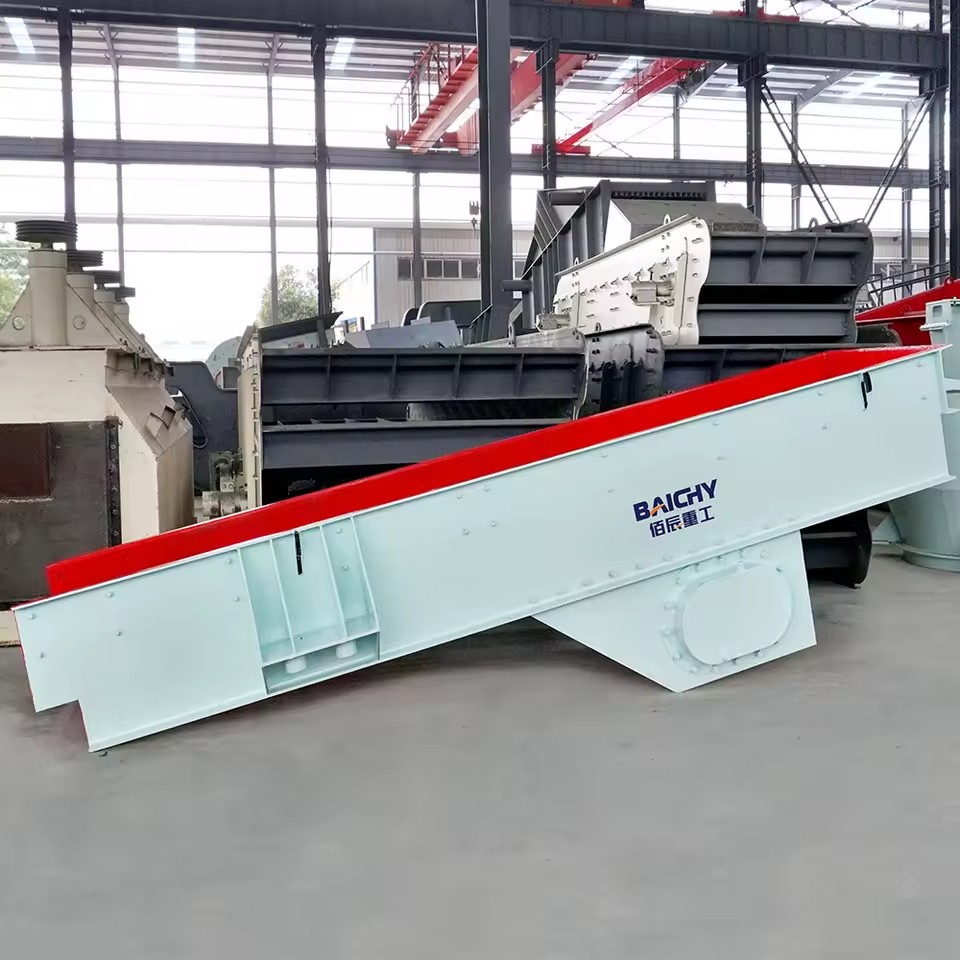

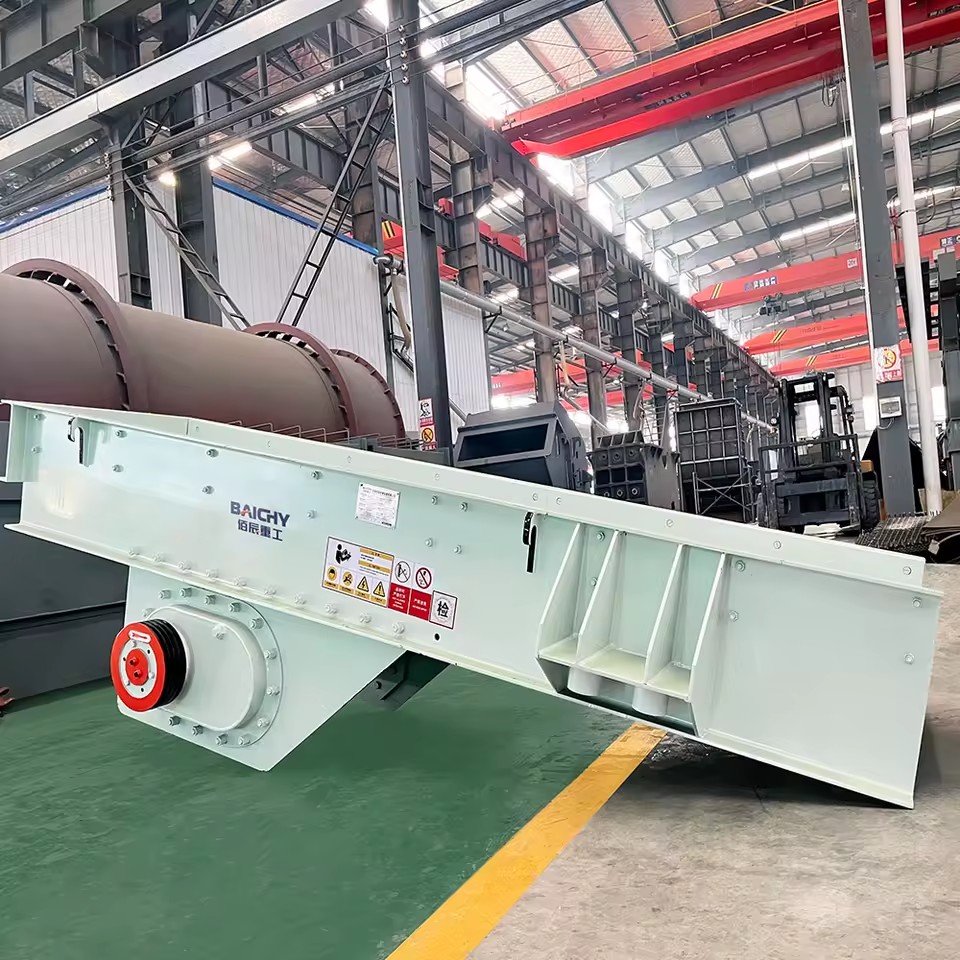

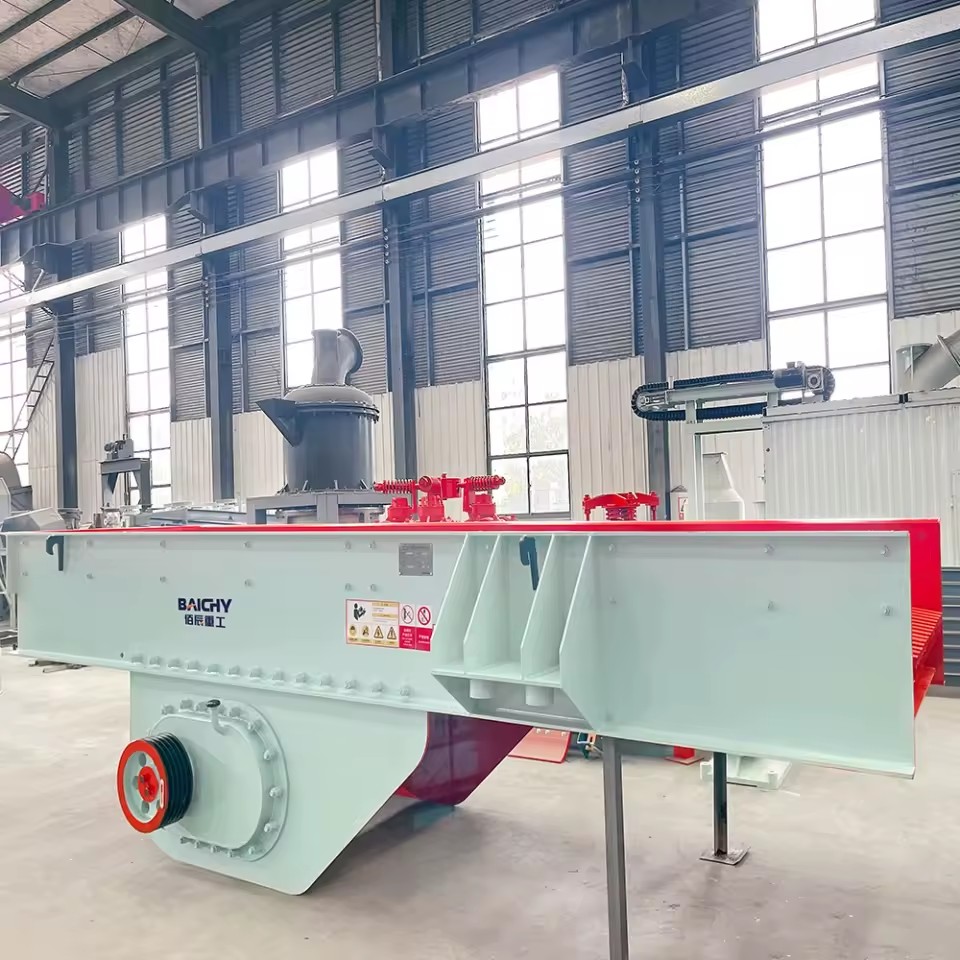

What is vibrating feeder?
Vibrating feeder is used to feed rocks to primary crushing equipment continuously and evenly in the sand and gravel
| Model | Trough size(mm) | Max feed size(mm) | Capacity (t/h) | Motor Power (kw) | Overall dimension L*W*H(mm) |
| ZSW-650*2500 | 650*2500 | 300 | 50-80 | 5.5 | 2500*1360*780 |
| ZSW-850*3000 | 850*3000 | 400 | 80-120 | 7.5 | 3110*1800*1600 |
| ZSW-960*3800 | 950*3800 | 500 | 120-210 | 11 | 3850*1950*1630 |
| ZSW-1100*4200 | 1100*4200 | 580 | 200-430 | 15 | 4400*2050*1660 |
| ZSW-1100*4900 | 1100*4900 | 580 | 280-500 | 15 | 5200*2050*1700 |
| ZSW-1300*4900 | 1300*4900 | 650 | 450-600 | 22 | 5200*2350*1750 |
How to choose vibrating feeder?
1. Vibrating feeders have steel plate structure and grate structure. The vibrating feeder with steel plate structure feeds all materials evenly into the crushing machine. It is mostly used in sand and gravel production plant.
2. Grate type vibrating feeder has a grading function and adjustable gap on the feeding surface near the discharge end, so it can separate the soil and fine-grained materials while feeding. This will improve primary crusher’s crushing efficiency.
3. Small vibrating feeder is used to uniformly, continuously or quantitatively feed blocky, granular and powdery materials from the storage bin or other storage equipment to the receiving equipment. It is suitable for automatic batching, quantitative packaging and automatic control.
4. The vibrating feeder produced by Machinery has features of stable vibration, reliable operation, low noise, low energy consumption, convenient equipment adjustment and installation. It can adopt a closed structure body to prevent dust pollution.

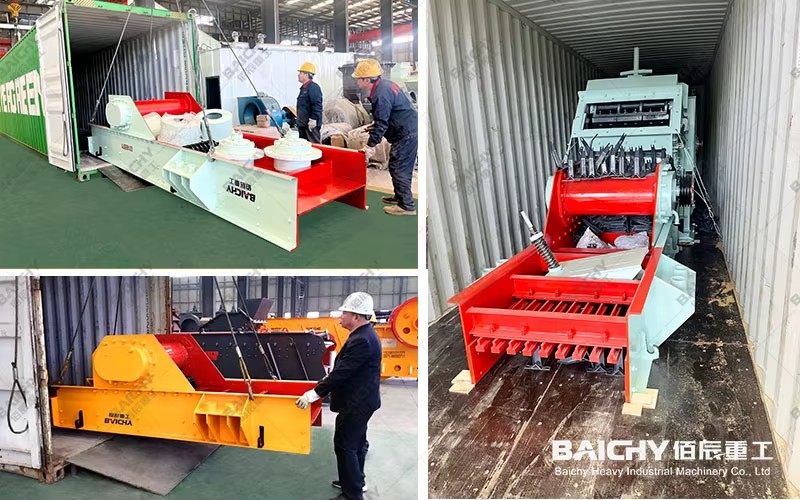

About Vibrating Feeder Export Packaging
When packing the Vibrating Feeder for export, the first thing to consider is the choice of packaging materials. Due to the large size and heavy weight of the Vibrating Feeder, it may face adverse factors such as vibration and impact during transportation, so it is necessary to choose sturdy and durable packaging materials; we will choose wooden boxes or metal frame packaging, which can provide better protection and prevent the equipment from being damaged during transportation.
There are many aspects to consider when packing the Vibrating Feeder for export, including the selection of packaging materials, internal fixation and protection, external identification and document preparation, transportation methods and insurance, packaging reinforcement, tracking and communication, etc. Only by doing these things well can we ensure that the cone crusher is properly protected during the export process and arrives safely at the destination.
What Is The Working Principle Of The Vibrating Feeder

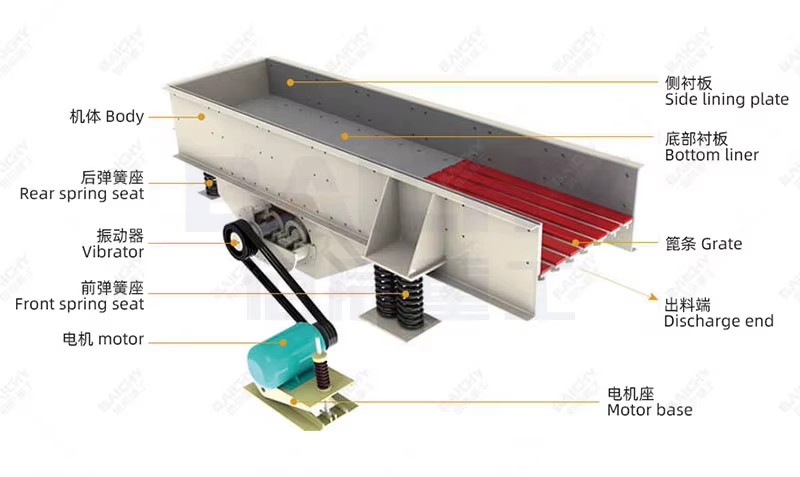

The vibrating feeder is composed of a feeding trough, a vibrator, a spring support, and a transmission device. It generates a huge linear exciting force under the drive of the motor, which makes the machine's body vibrate.
Under this vibration, the material moves forward on the trough and is transported into the crusher.

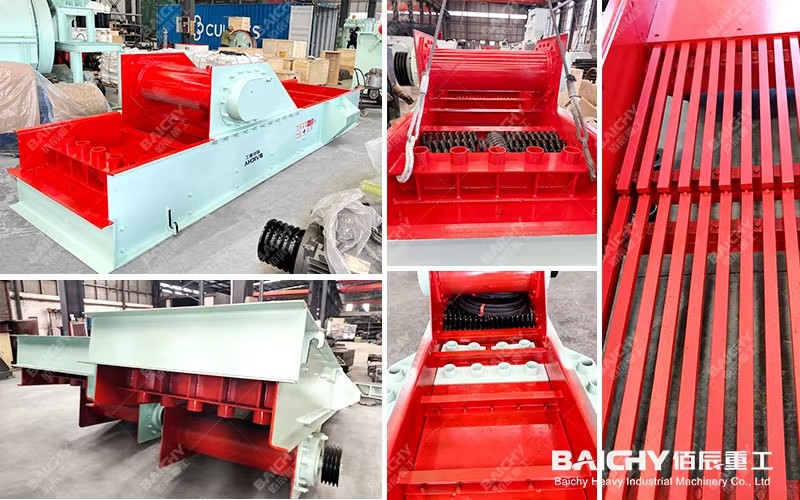

When the materials pass through the sieve bars on the tank body, the larger materials directly enter the crusher, and the smaller materials fall from the gaps in the sieve bars, which also achieves some screening effects and improves work efficiency.
What are the advantages of Vibrating Feeder?
1.Low maintenance cost There are many wear-resistant parts, all of which are made of high-quality steel. Even if it is used for a long time, the wear and tear of the machine are very small, so you can use it with confidence.
2.High working efficiency Our vibrating feeder can transport large volumes of material with a capacity of 30–600 t/h. And the feeding is uniform and the continuous performance is good.
3.Stable structure Special grid design and adjustable grid gap can prevent material from clogging. In addition to this, it has a strong load-bearing structure that can withstand bulky materials.
4.Less environmental pollution vibrating feeder has low noise, low energy consumption, no flushing phenomenon, good comprehensive performance, and adopts a closed structure to reduce dust pollution.
Perfect after-sales service
Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.
The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
To prevent the rights and interests of customers from being infringed, Industry reminds customers: please contact
All our products are strictly manufactured according to ISO/CE standards, affordable, and of unmatched quality. We focus on product quality and will take responsibility for any defects. OEM/ODM services are available. We have rich experience in export and project management and can 100% ensure the safety of your order.
About Customer Visits
Machinery's equipment has been exported to more than 150 countries around the world. This global business layout requires Baichen Heavy Industry to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.
Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.
Frequently Asked Questions
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete
