Product video
Certifications CE

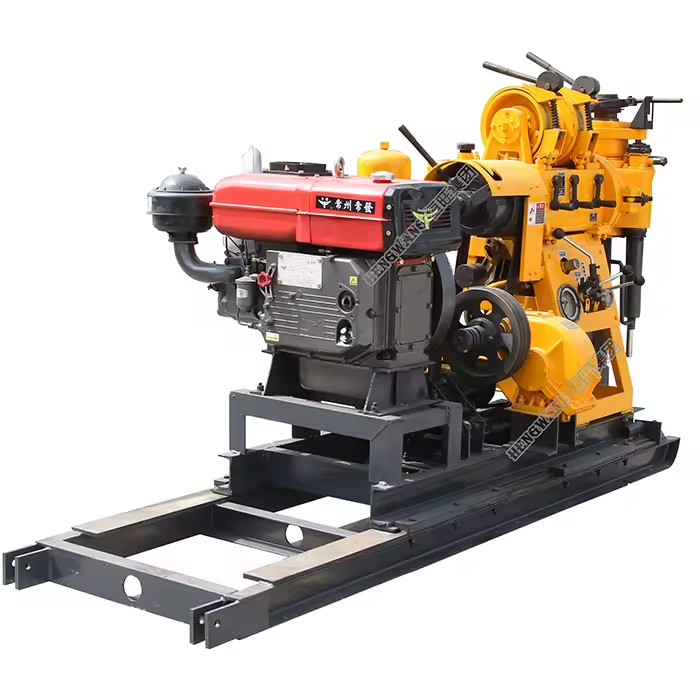

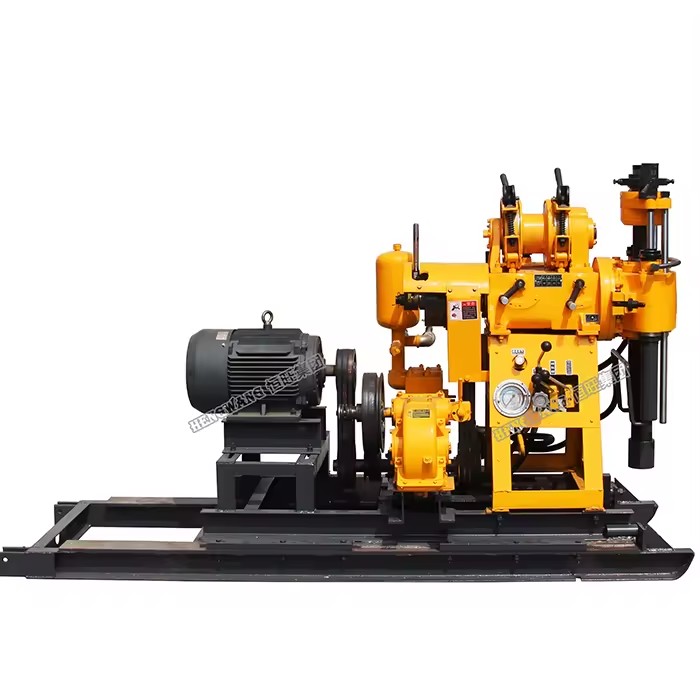

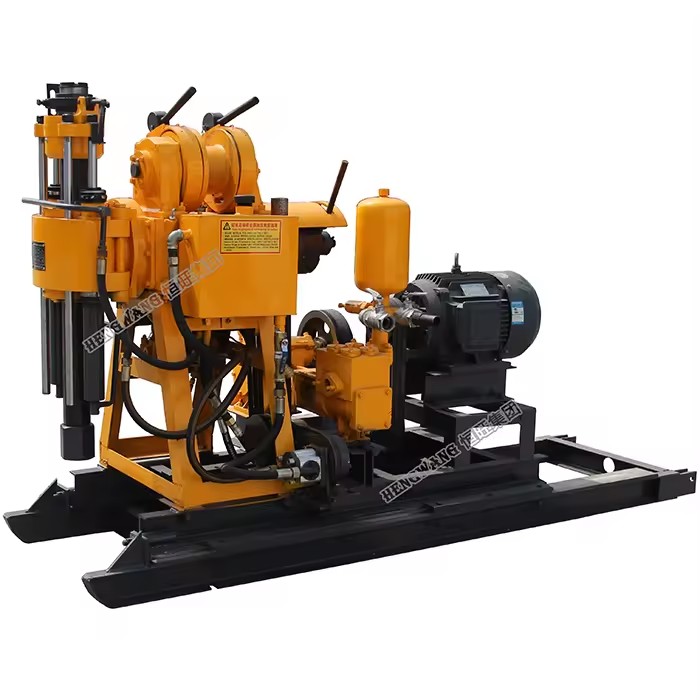

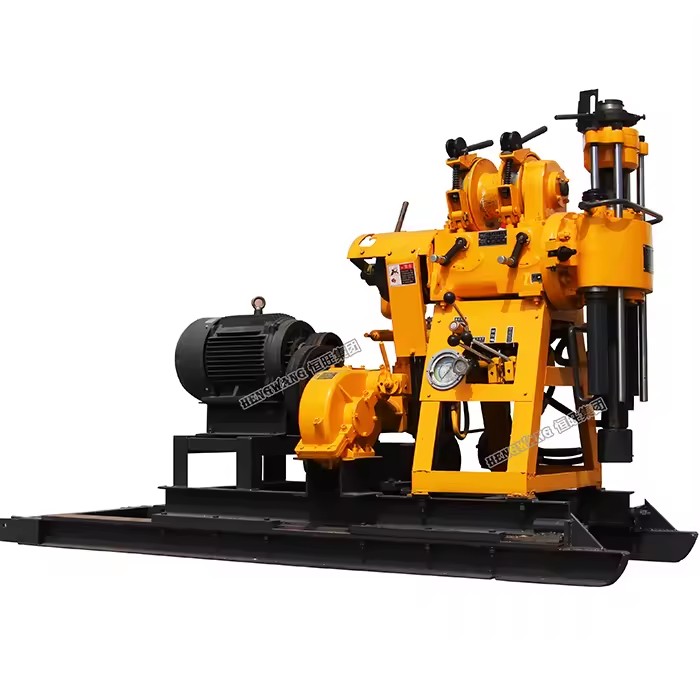

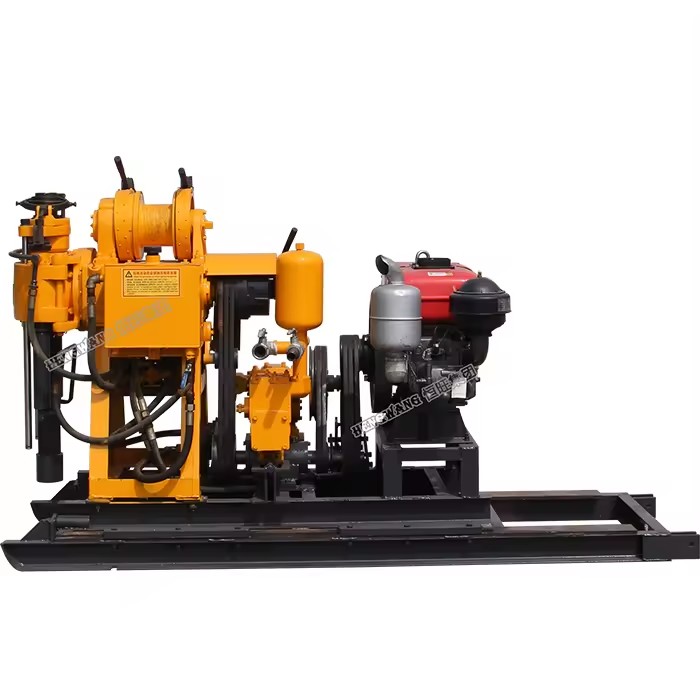

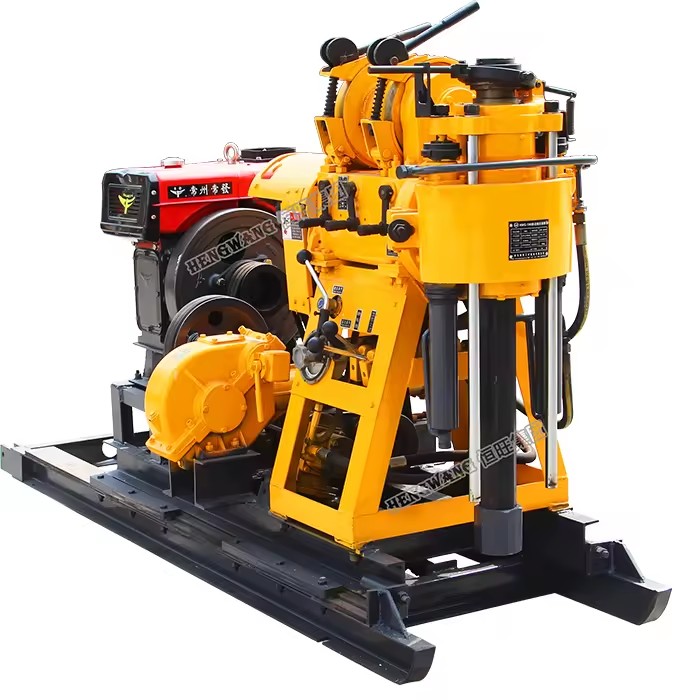

190m Hydraulic Bore Well Water Well Sand Drilling Rig in Low Price

Available for enquiry 0.0 · 0 reviews
USD

$ 8,170.00 8170.0 USD $ 8,170.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Open hole dia. (mm) soil/rock
  • End hole dia. (mm)
  • Drill rod dia. (mm)
  • Drill angle (°)
  • Weight without engine (kg)
  • Spindle speed (r/min)
  • Mud pump Max.pressure
  • Drill Mast Rated load (ton)
  • Packaging Details
  • Port of dispatch
  • Selling Units
  • Single package size
  • Single gross weight
  • Supply Ability
  • Power (W) (Product option)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m, 190M
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 450 mm(17.72in)
Power Type
Diesel
Voltage
380V
Product description
HW type Main teclinical parameters of hydraulic drilling rig
Machine specificationModelHW-160/160YYHW-190/190YYHW-230/230YY
Drilling depth(m)160190230
Open hole dia. (mm) Soil/rock500、 220500、 220500、 273
End hole dia. (mm)757575
Drill rod dia. (mm)42、5042、5042、50、60
DriU angle C )90-7590-7590-75
Matching engine power (kW)13.213.215
Weight without engine (kg)600/740620/750880/970
Machine Dimension L*W*H (m)2.4*0.8*1.32.4*0. 8*1.42. 7*0. 9*1.5
SpindleSpeed (r/min)142/285/570130/300/480/730/830/104564/128/287/557
Stroke (mm)450450450
WinchSingle rope lift force (kg)200021002500
Single rope lift speed (m/s)0.41-1.640. 35-2. 230.12-0.95
Rope dia. (mm)9.39.312.5
Rope capacity(m)272735
Drill MastRated load (ton)181818
Effective height(m)6.56.56.5
Mud pumpFlow(L/Min)9595145
Max. pressure (MPa)1.21.22
Back and forth times/min939393
Inlet hose dia. (mm)515151
Outlet hose dia. (mm)323232
Certifications & compliance
CE
Complies with EU standards
Description images

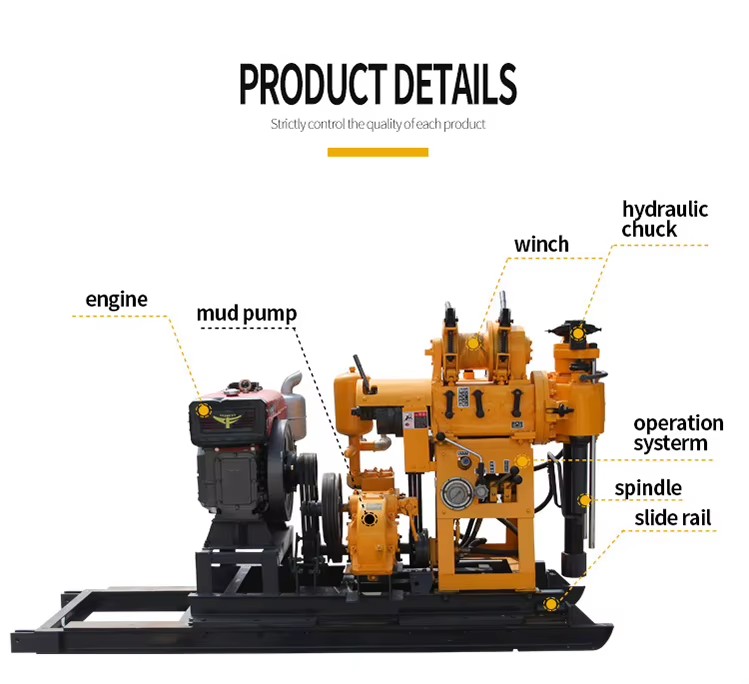

Product detail

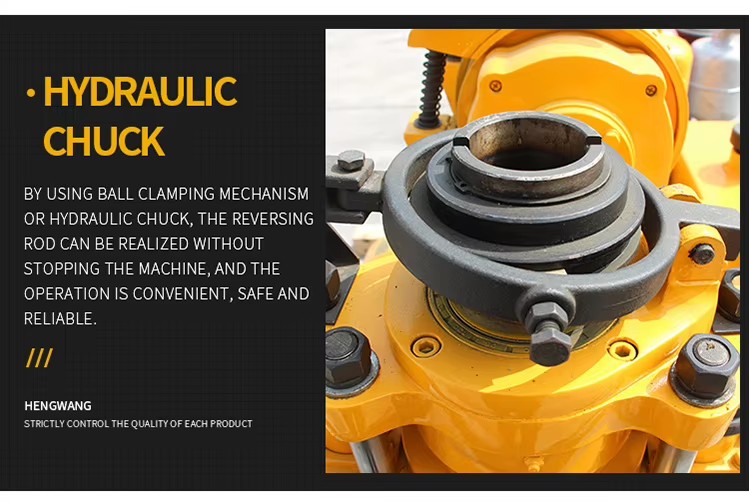

Product detail

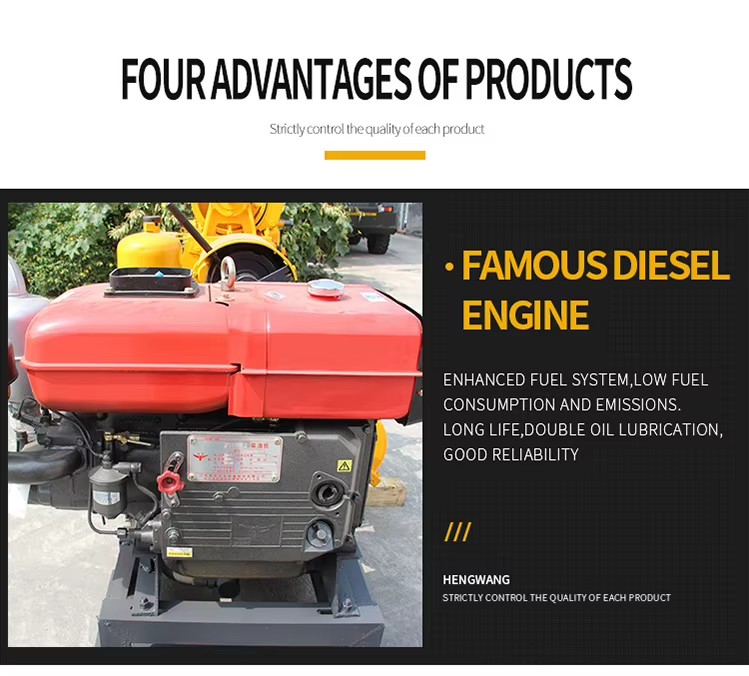

Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m, 190M
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 450 mm(17.72in)
Power Type
Diesel
Voltage
380V
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Not Available
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
620 KG(1366.87lb)
Dimension (L*W*H)
2400*800*1400mm(94.49*31.50*55.12in)
Open hole dia. (mm) soil/rock
220
End hole dia. (mm)
75
Drill rod dia. (mm)
50
Drill angle (°)
90-75
Weight without engine (kg)
750
Spindle speed (r/min)
130/300/480/730/830/1045
Mud pump Max.pressure
1.2MPa
Drill Mast Rated load (ton)
18
Packaging Details
Packed in wooden box
Port of dispatch
Qingdao
Selling Units
Single item
Single package size
100X50X27 cm
Single gross weight
58.000 kg
Supply Ability
1000 sets per Month
Power (W) (Product option)
13200W(17.70hp)
Model number
HW-190, HW-190YY, HW190YY, HW190
Certifications & Compliance
CE
Lead time
7 days
