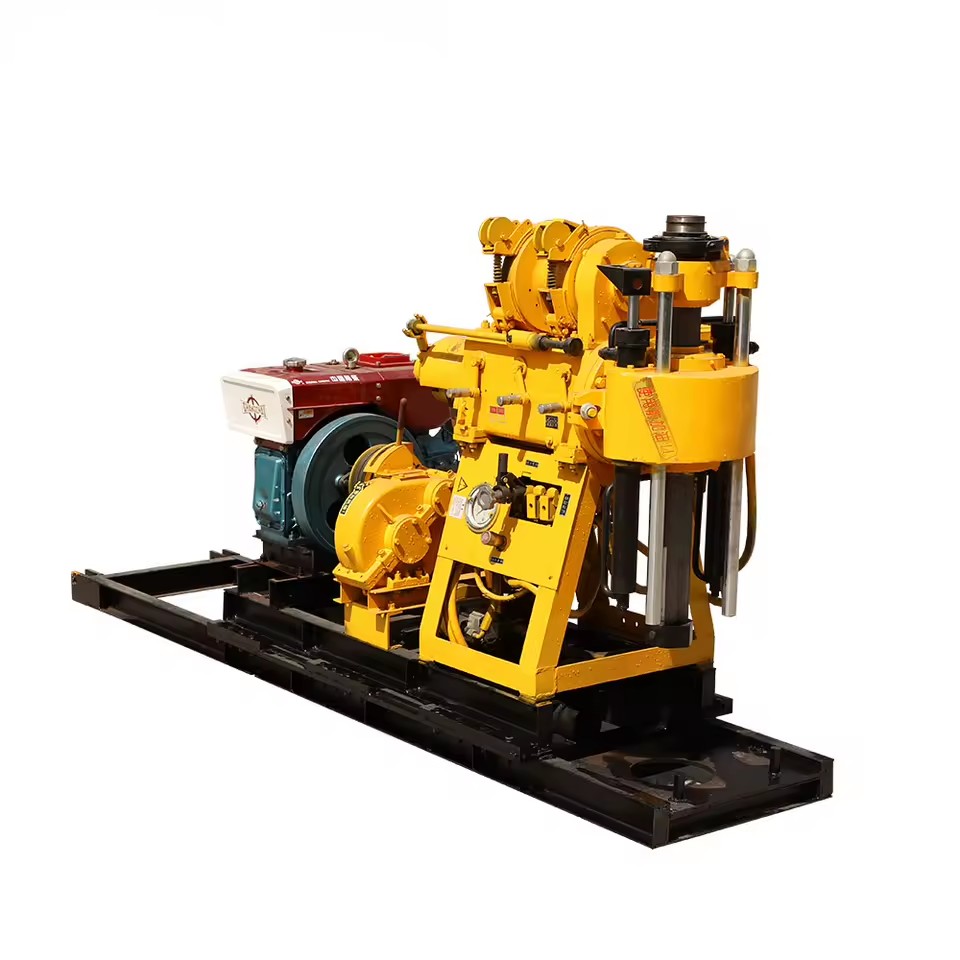

100m Drilling Rig Diamond Core Drilling Equipment Water Well Drilling Machine Price

Available for enquiry 5.0 · 1 reviews
USD

$ 4,080.00 4080.0 USD $ 4,080.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Open hole dia.
  • End hole dia.
  • Drill angle
  • Drill rod dia.
  • Matching engine power
  • Spindle stroke
  • Single Rope Lift Force
  • Drill Mast Effective height
  • Mud pump flow
  • Packaging Details
  • Port of dispatch
  • Selling Units
  • Single package size
  • Single gross weight
  • Supply Ability
  • Power (W) (Product option)
  • Model number

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m, 160m
Drilling Diameter
75mm, 300 mm, 100 mm, 200 mm, 50 mm, 60 mm
Power Type
Diesel
Voltage
380V
Product description
Main technical parameters
Machine parametersModelHW-160/160YYHW-190/190YYHW-230/230YY
Drilling depth(m)160190230
Open hole dia.(mm) Soil/Rock500 /220500/220500/273
End hole dia.(mm)757575
Drill angle(°)90-7590-7590-75
Drill rod dia.(mm)42/5042/5042/50
Matching engine power（kw）13.213.215
Weight without engine(kg)600/740620/750880/970
Machine Dimension (m)2.4*0.8*1.32.4*0.8*1.42.7*0.9*1.5
SpindleSpeed(r/min)142/285/570130/300/480/730/830/104564/128/287/557
Stroke450450450
WinchSingle rope lift force(kg)200021002500
Single rope lift speed(m/s)0.41-1.640.35-2.230.12-0.95
Rope dia.(mm)￠9.3￠9.3￠9.3
Rope capacity(m)272735
Drill MastRated load(ton)181818
Effective height(m)6.56.56.5
Mud PumpFlow(L/min)9595145
Max.pressure1.21.22
Back and forth times/min939393
Inlet hose dia.(mm)515151
Outlet hose dia.(mm)323232
Description images

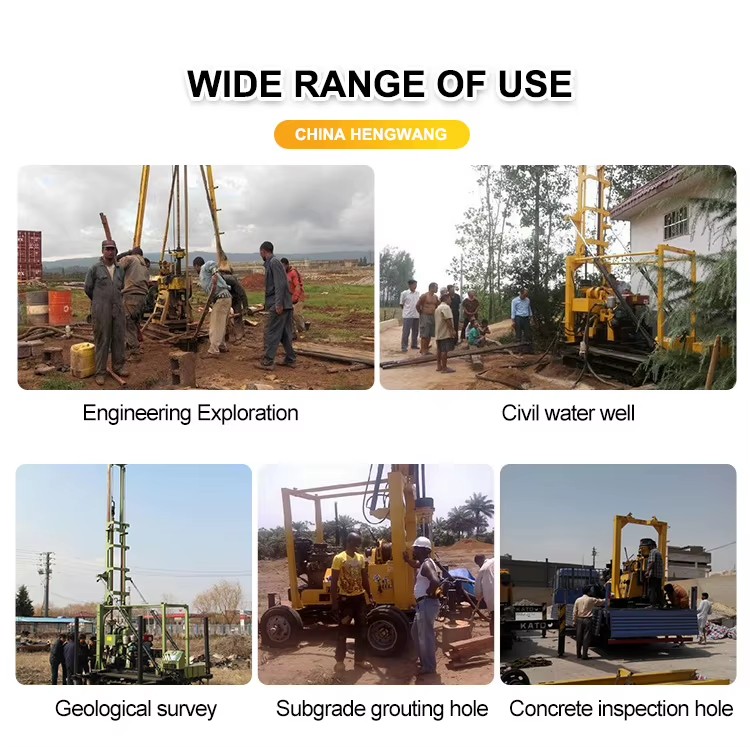

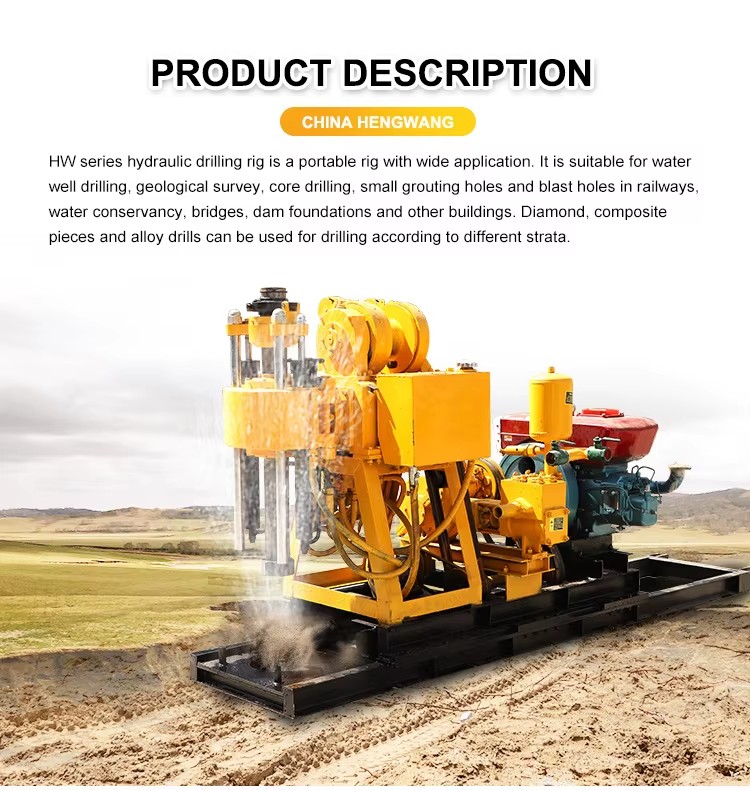

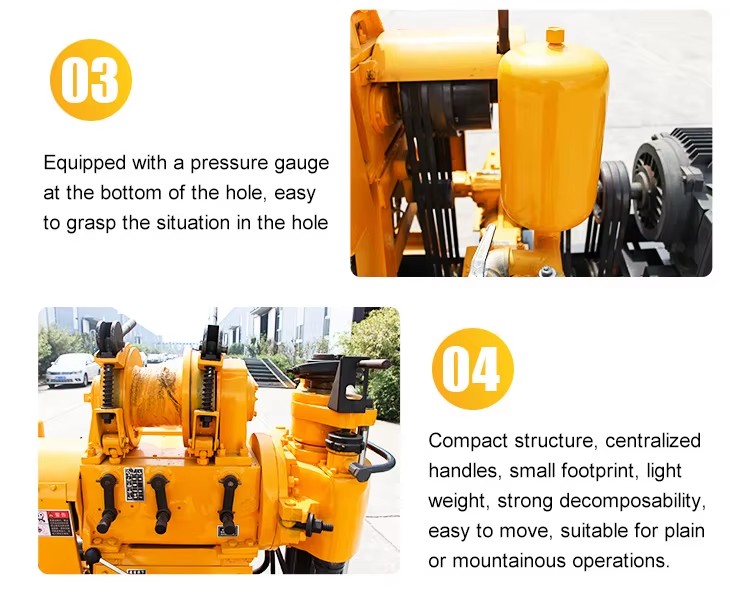

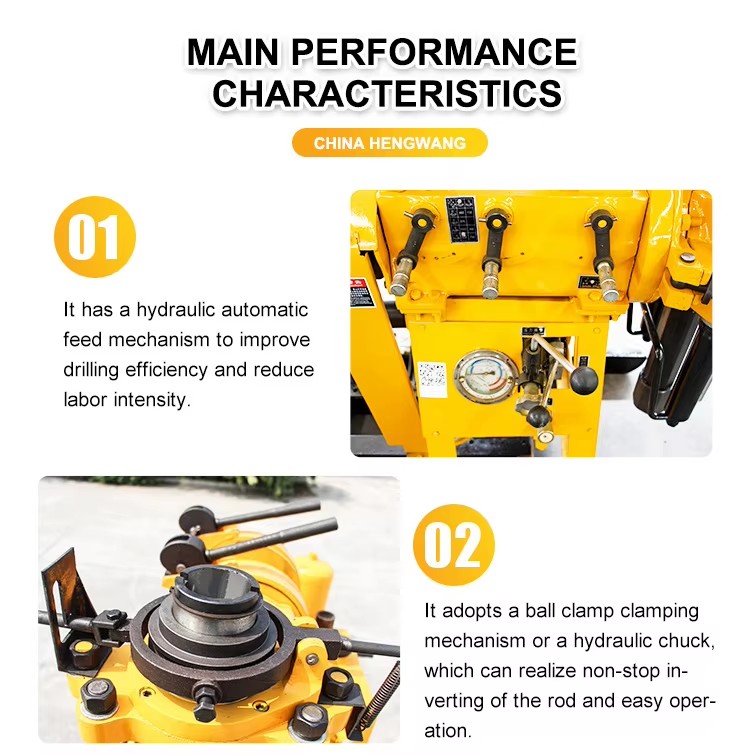

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m, 160m
Drilling Diameter
75mm, 300 mm, 100 mm, 200 mm, 50 mm, 60 mm
Power Type
Diesel
Voltage
380V
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
740 KG
Dimension (L*W*H)
2400*800*1300mm
Open hole dia.
Soil 500mm /Rock 220m
End hole dia.
75mm
Drill angle
75°-90°
Drill rod dia.
42mm/50mm
Matching engine power
13.2KW
Spindle stroke
450mm
Single Rope Lift Force
2000KG
Drill Mast Effective height
6.5m
Mud pump flow
95L/min
Packaging Details
Standard export package for 80 meters hot selling portable water well drilling rig 100m 200m portable drill rig machine
Port of dispatch
Qingdao, ShangHai, Dalian, tianjin
Selling Units
Single item
Single package size
240X80X130 cm
Single gross weight
740.000 kg
Supply Ability
300 sets per Week
Power (W) (Product option)
13.2/15KW
Model number
HW-160YY, HW-190YY, HW-230YY
Lead time
7 days
Minimum order
1 Units
