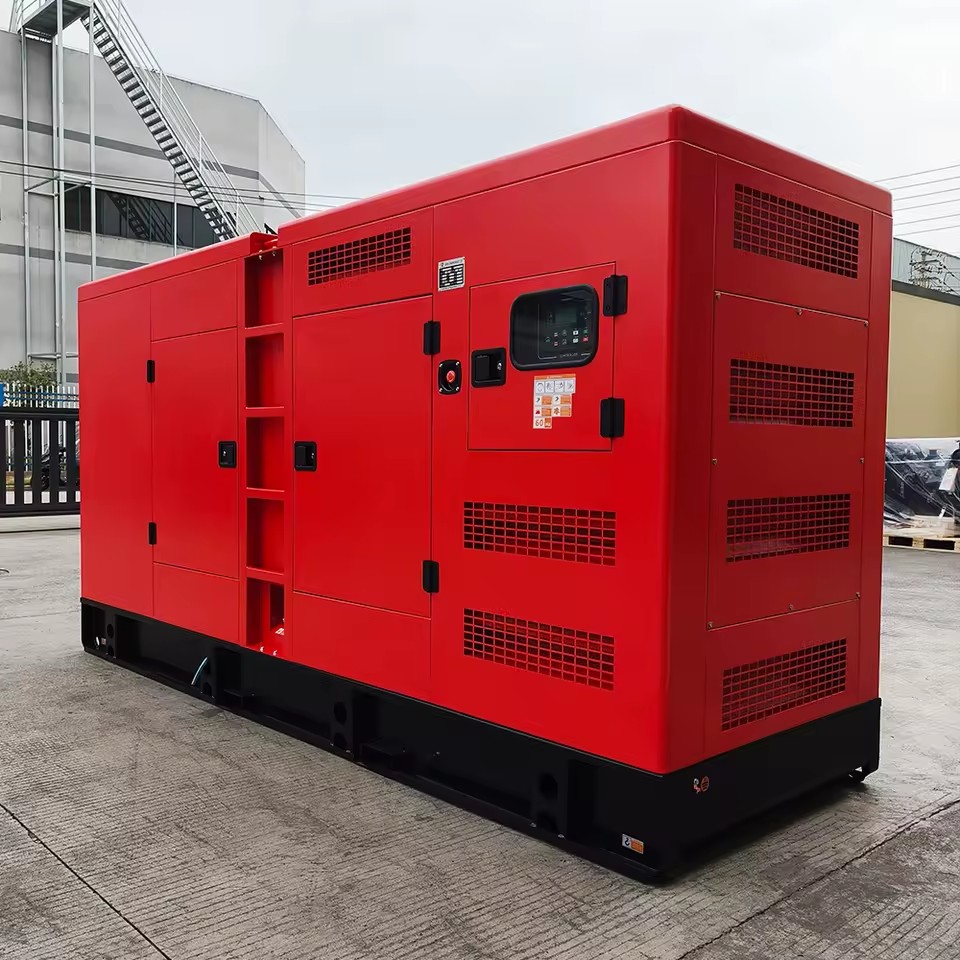

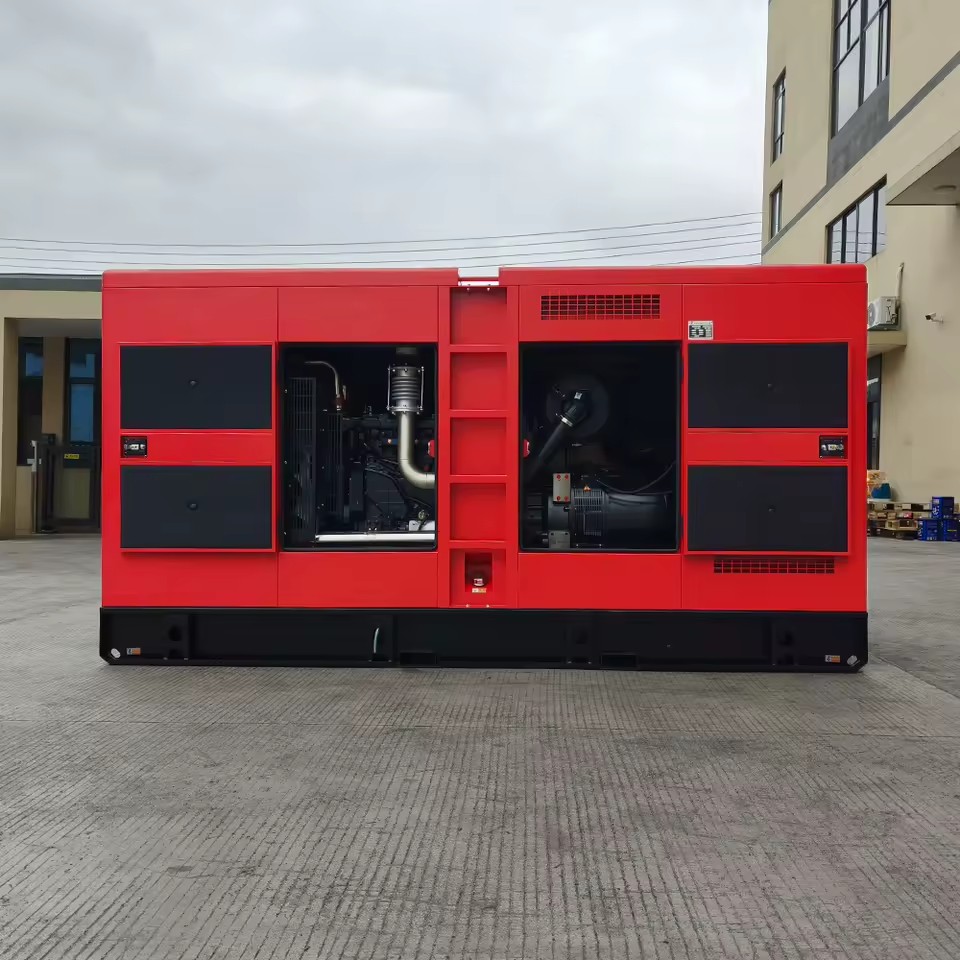

100 Kva Silent 100kva diesel Generator 100kva Electricity Generating 100kw for Sale

Available for enquiry 0.0 · 0 reviews
USD

7,420.00 7420.0 USD 7,420.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Frequency
  • Rated voltage
  • Type
  • Cooling System Type
  • Rated current
  • Protection
  • Speed
  • Starting System
  • Options
  • Efficiency
  • Place of origin
  • Application
  • Model number (Specification)
  • Parallel Operation Capability
  • Certificate
  • Technical
  • One-stop service
  • Warranty
  • Delivery Port
  • Competitive
  • Factory address
  • Our advantage
  • Selling Units
  • Single package size
  • Single gross weight
  • Rated Power (Product option)
  • Output Type

This combination is unavailable.

Key attributes

View all
Frequency
50 Hz, 60 Hz
Rated voltage
220 V, 380 V, 110 V, 230 V, 240 V, 400 V, 480V, 415V
Type
Portable Type, Open Frame, Super Silent Type, Silent Type, Container Type, Canopy Type
Cooling System Type
Water Cooling System
Rated current
depends on voltage
Protection
Overload Protection, Automatic Voltage Regulation, Low Oil Shutdown, Under-Voltage Protection
Product description
We have power from 10kw-2000kw,any interesting please contact with us to quote the best price for you
Details GensetGenSet ModelVG-R138Typesilent(optional open)
Frequency (Hz)50/60Speed rpm1500/1800
N.W (kg)1580Size (L*W*H)mm2800*1080*1450
8.1Fuel Con.(L/H)24.2Fuel capacity tank258
Running time (H)10.6Sound decibel (DB)70-90

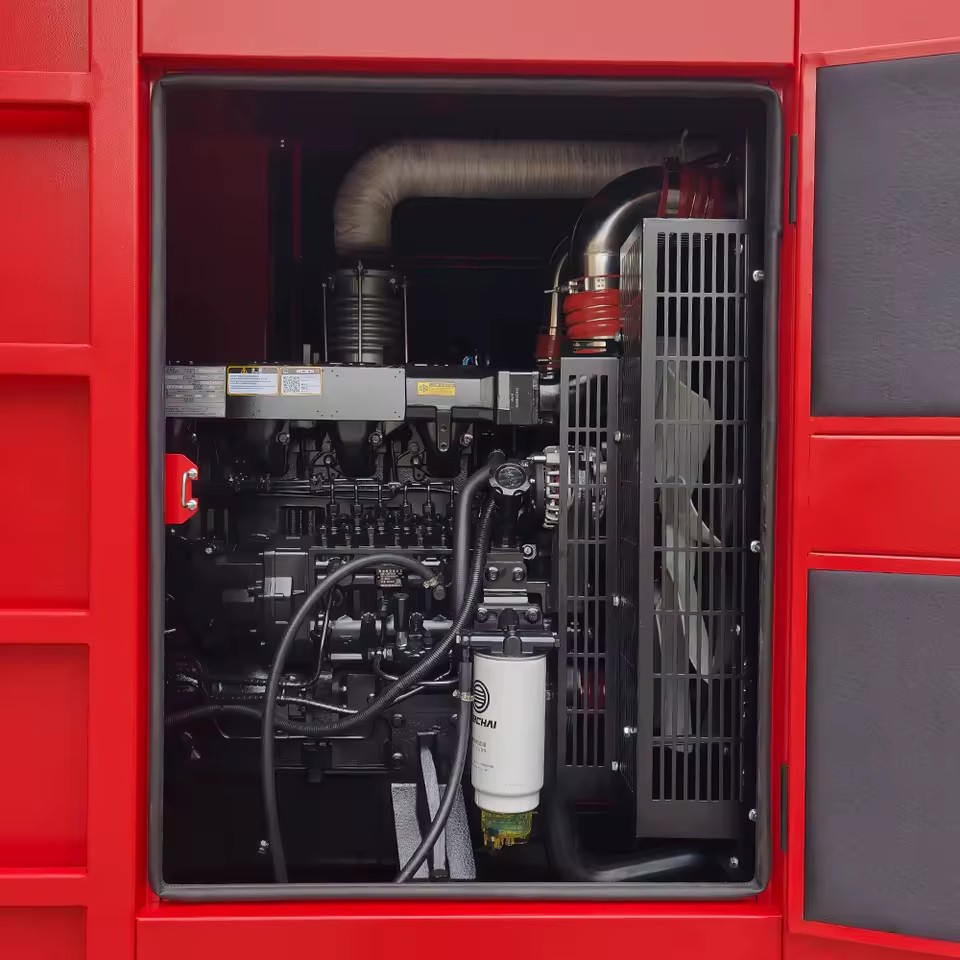

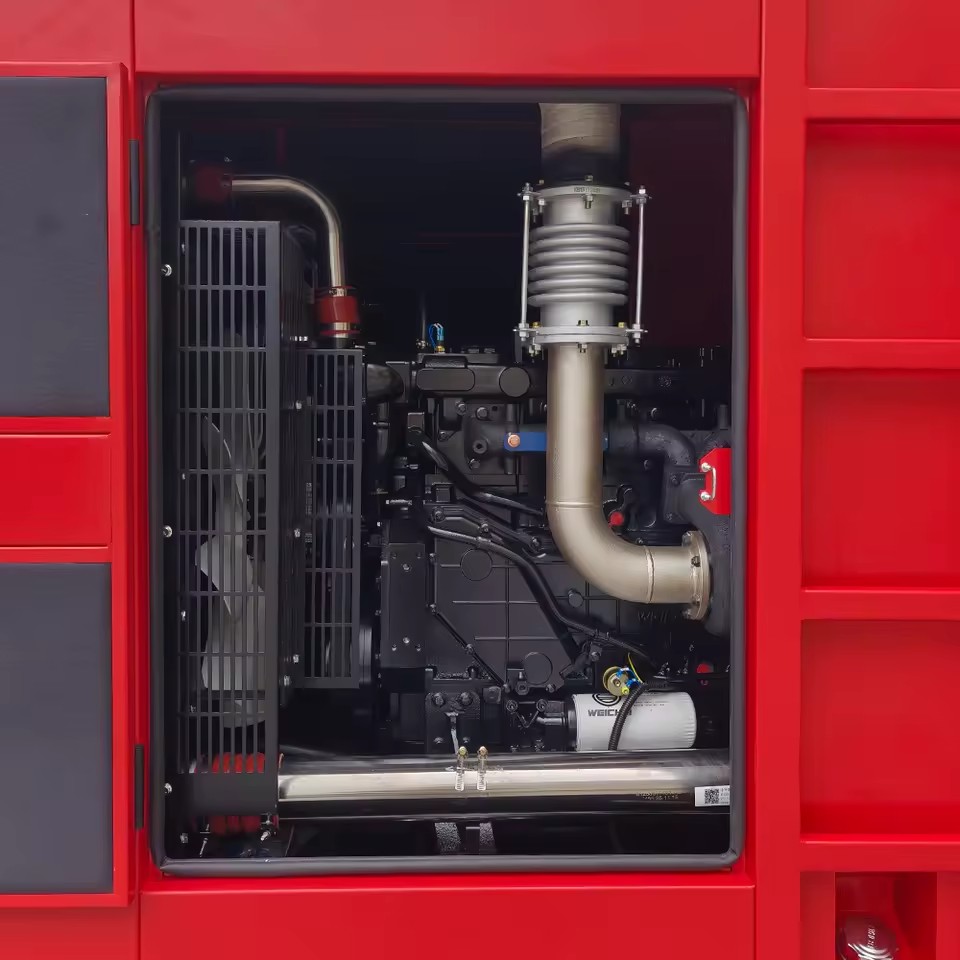

Details EngineBrandRicardo (Optional Cummins, Weifang, Yuchai, etc.)
ModelR6105AZLDFuelDiesel
Cylinder6Cooling systemwater
StarterelectricDisplacement(L)6.75
Details AlternatorBrandStanford, original Stanford, Marathon, Lehua Somer, etc.
ModelVG-R138TypeBrushless sel-excited
Pure copper content100%Efficient92%
Radiator40℃-50℃BatteryElectric start 24V charger
3 phase powerRated power100kw/125kvaRated voltage230V/380V/400V/415V
Standby power110kw/138kvaRated current188A/144A/108A/104A
Optional single phase
HIGH-DENSITY WAVE SOUND-ABSORBING COTTON 1. When sound waves pass through cotton, they are reflected by countless fibers,superimposed on each other, and collide.The sound wave energy is converted into heat energy, so that the intensity of the sound wave is weakened and the sound disappears. 2. Mute sponge Mute sponge, thickness 33 mm
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Ocean + Truck via Maersk · Approx. shipping fee: $ 931.12 for 1 set · Transit time: Est. 27-34 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Frequency
50 Hz, 60 Hz
Rated voltage
220 V, 380 V, 110 V, 230 V, 240 V, 400 V, 480V, 415V
Type
Portable Type, Open Frame, Super Silent Type, Silent Type, Container Type, Canopy Type
Cooling System Type
Water Cooling System
Rated current
depends on voltage
Protection
Overload Protection, Automatic Voltage Regulation, Low Oil Shutdown, Under-Voltage Protection
Speed
1800 RPM, 1500 RPM
Starting System
Auto Start, Recoil Start, 12V DC Electric Start, 24V DC Electric Start, Remote Start
Options
Remote Control, Rainproof Canopy, Battery Charger, Soundproof Canopy, Digital Module, RS485 Interface, Current Meter, Modbus RTU Communication Module, Ethernet Port, GPS Tracking, 4G/LTE Telemetry, WiFi Remote Monitoring, Remote Firmware Upgrade
Efficiency
95%
Place of origin
China, Fujian, Fuan city--- the original place of Generator and motor
Application
Industrial, Hospital, marine, Mining, Construction Site, residential, Commercial, Data Center, Telecom Base Station
Model number (Specification)
GFS-200
Parallel Operation Capability
Auto Sync, Max 8, Max 32, Max 4, Max 16, 32+, Max 2
Certificate
CE, ISO9001,SONCAP, CIQ
Technical
The introduction of Germany technology
One-stop service
More than 16 years old factory
Warranty
We may make 2 years quality warranty
Delivery Port
Shenzhen, Any port in China
Competitive
Top1 generator machinery factory
Factory address
JIAN ROAD FUAN CITY, FUJIAN, CHINA
Our advantage
Our workers are all from Chinese earliest MINDONG factory
Selling Units
Single item
Single package size
280X108X145 cm
Single gross weight
1420.0 kg
Rated Power (Product option)
100 kW
Output Type
AC Single Phase, AC Three Phase
Lead time
31 days
Minimum order
1 Units
